Tile levelling Products
BOOST LEVEL
components

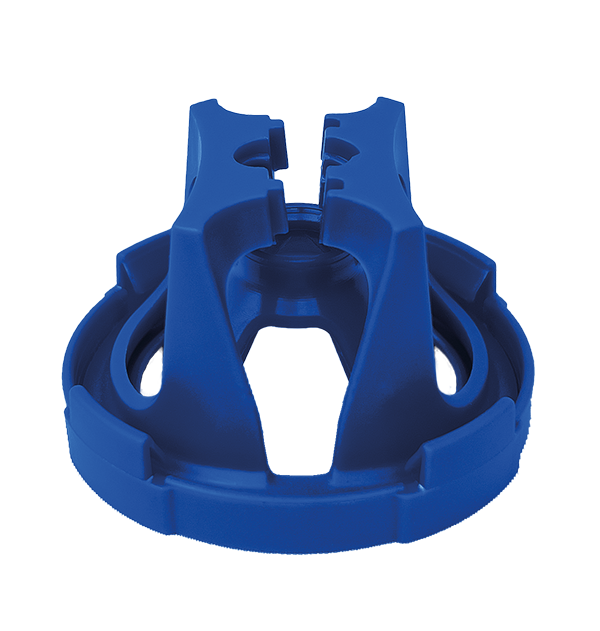

BOOST LEVEL is an innovative screw cylinder for levelling, which offers the fastest installation system for floor and wall tiles on the market.
- Quick and easy to use, installation is intuitive and fast. Simply insert and apply light pressure to securely connect the cylinder to the spacer screw.
- Design allows broken screws to the automaticaly ejected, speeding up the removal process.
- Self-locking clamp system prevents the screw from slipping ensuring precise installation.
- Works with spacer clips of any shape: Linear, Cross and T-shape making it extremely versatile when working on site.
- Integrated anti-scratch rubber pad prevents marking.
- Works with a wide range of tiles from 3 to 30mm.
- Joint lines available: Linear 1, 1.5, 2, 2.5, 3 and 4mm (3/64, 1/16, 5/64, 7/64, 1/8 and 5/32''), Cross and T-shape 1, 2 and 3mm (3/64, 5/64 and 1/8") only.
The cylinder is made of PP (Polypropylene), and the spacer screws are made of HD-PE (Polyethylene)
| Code | Product | Size mm (in.) | Bag | Pkg. | Pallet Qty. | UM | |
|---|---|---|---|---|---|---|---|
| TER04-4460DK | Boost Level Cylinder | - | 50 pcs. | 8 bags | 120 bags | bag | |
 | TER04-4401DK | Linear screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 1mm (³⁄₆₄") | 100 pcs. | 25 bags | 375 bags | bag |
 | TER04-44015DK | Linear screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 1.5mm (¹⁄₁₆") | 100 pcs. | 25 bags | 375 bags | bag |
 | TER04-4402DK | Linear screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 2mm (⁵⁄₆₄") | 100 pcs. | 25 bags | 375 bags | bag |
 | TER04-44025DK | Linear screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 2.5mm (⁷⁄₆₄") | 100 pcs. | 25 bags | 375 bags | bag |
 | TER04-4403DK | Linear screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 3mm (⅛") | 100 pcs. | 25 bags | 375 bags | bag |
 | TER04-4404DK | Linear screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 4mm (⁵⁄₃₂") | 100 pcs. | 25 bags | 375 bags | bag |
| TER04-4421DK | “X” screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 1mm (³⁄₆₄") | 100 pcs. | 25 bags | 375 bags | bag | |
| TER04-4422DK | “X” screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 2mm (⁵⁄₆₄") | 100 pcs. | 25 bags | 375 bags | bag | |
| TER04-4423DK | “X” screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 3mm (⅛") | 100 pcs. | 25 bags | 375 bags | bag | |
| TER04-4431DK | “T” screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 1mm (³⁄₆₄") | 100 pcs. | 25 bags | 375 bags | bag | |
| TER04-4432DK | “T” screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 2mm (⁵⁄₆₄") | 100 pcs. | 25 bags | 375 bags | bag | |
| TER04-4433DK | “T” screw for h. 3 to 24mm (⅛ to 1 ⁵⁄₁₆'') | 3mm (⅛") | 100 pcs. | 25 bags | 375 bags | bag |
BOOST LEVEL
laying and usage

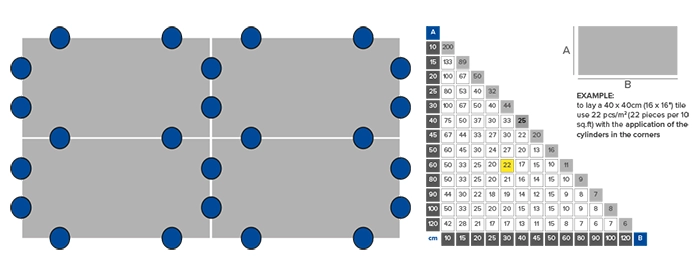

LINEAR APPLICATION
Indicative consumption - Example 1
Indicative consumption - Example 1

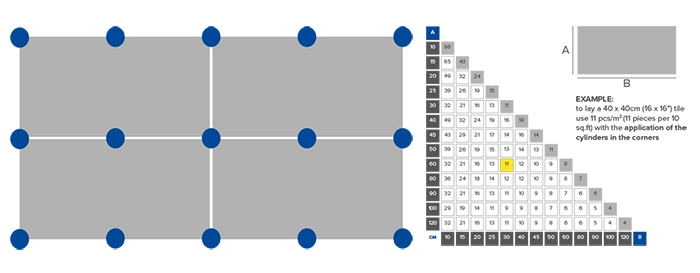

LINEAR APPLICATION
Indicative consumption - Example 2
