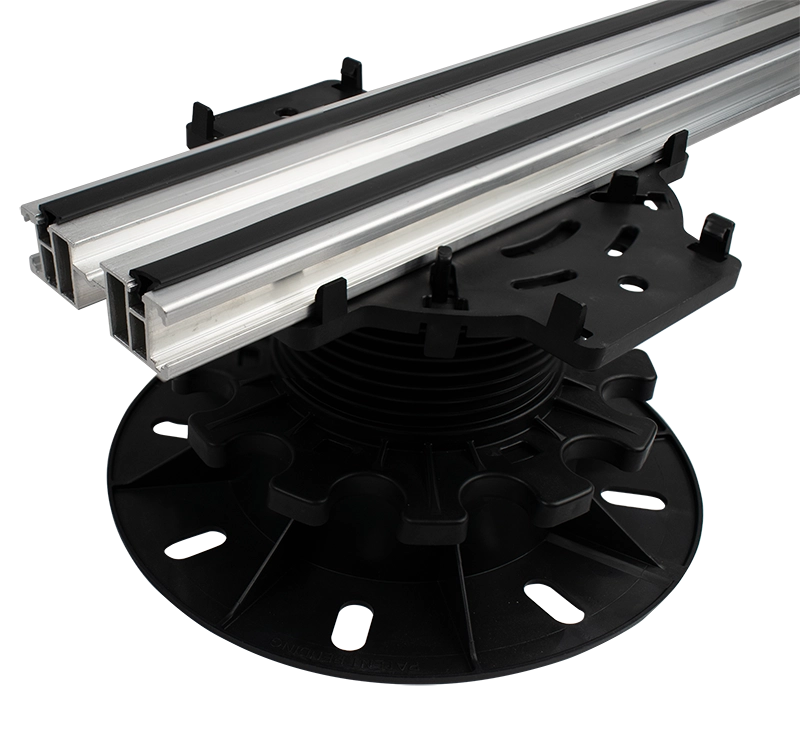

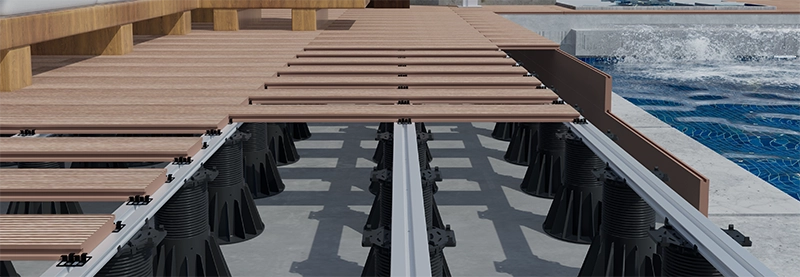

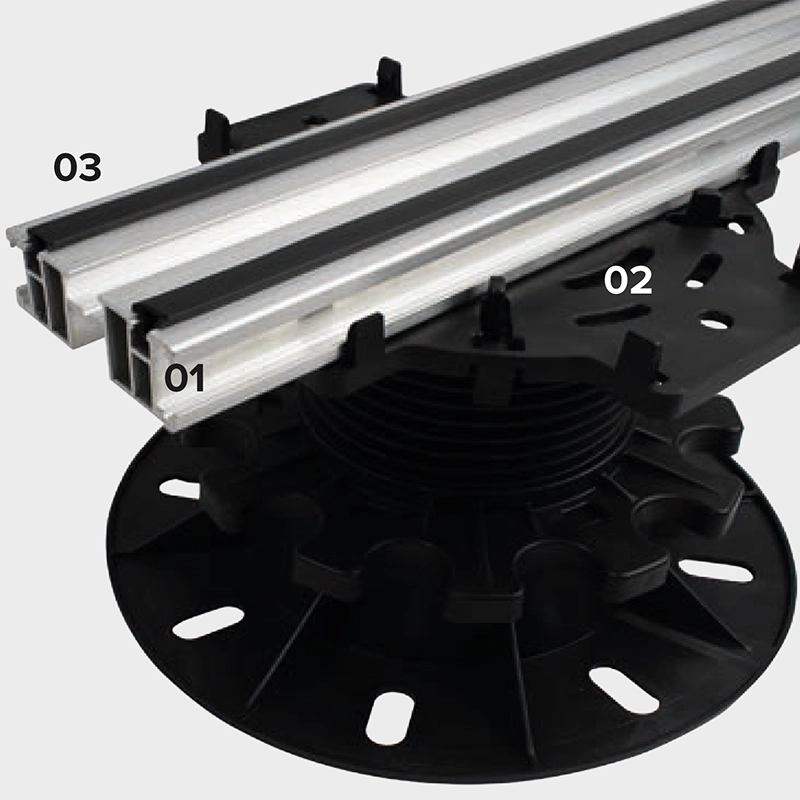

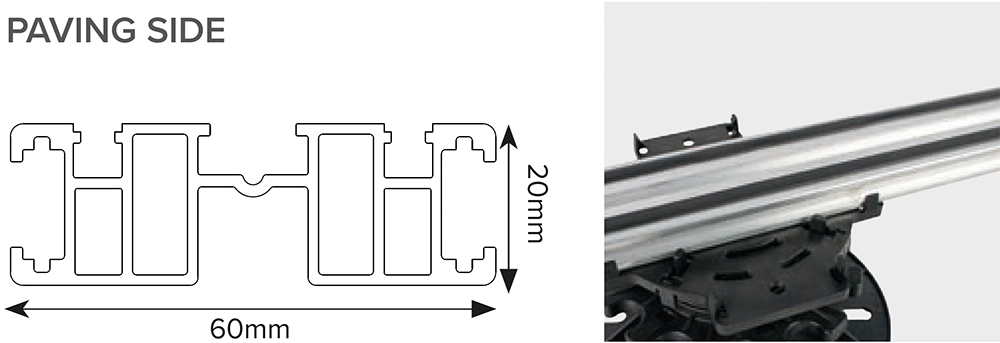

KERADECK® 20 is a low profile aluminium joist support system for decking and flooring installations where low threshold heights are required. The system is fully compatible with all ARKIMEDE® pedestal supports (excluding ARKIMEDE® 10) and the entire HERCULES® pedestal range.
The use of anti-noise rubber strips, applied into the provided channels in the top of the joist will help to reduce footfall noise for paving installations.
Accessory connectors allow linear, “T” and overlapping joints between multiple KERADECK® 20 joists.
The joists are made of aluminium, the adapter and cross spacers are made of PP (polypropylene), connectors of PA (polyamide) and the anti-noise rubber strip is made of thermoplastic rubber.
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|
| TER09-2299S | 01 KERADECK® 20 Aluminium Joist | 2,000mm (78⁷⁄₁₀) | 1 pc. | 200 pcs. | 1 pc. |
| TER09-2299S/4AH | 02 4-Way Adaptor for KERADECK® 20 for ARKIMEDE® and HERCULES® | - - | 30 pcs. | 3,780 pcs. | 1 pc. |
| TER09-2299S/G | 03 Anti-noise rubber strip | 8.9mm x 100m (⅓'' x 328') | 1 pc. | 18 pcs. | 1 pc. |

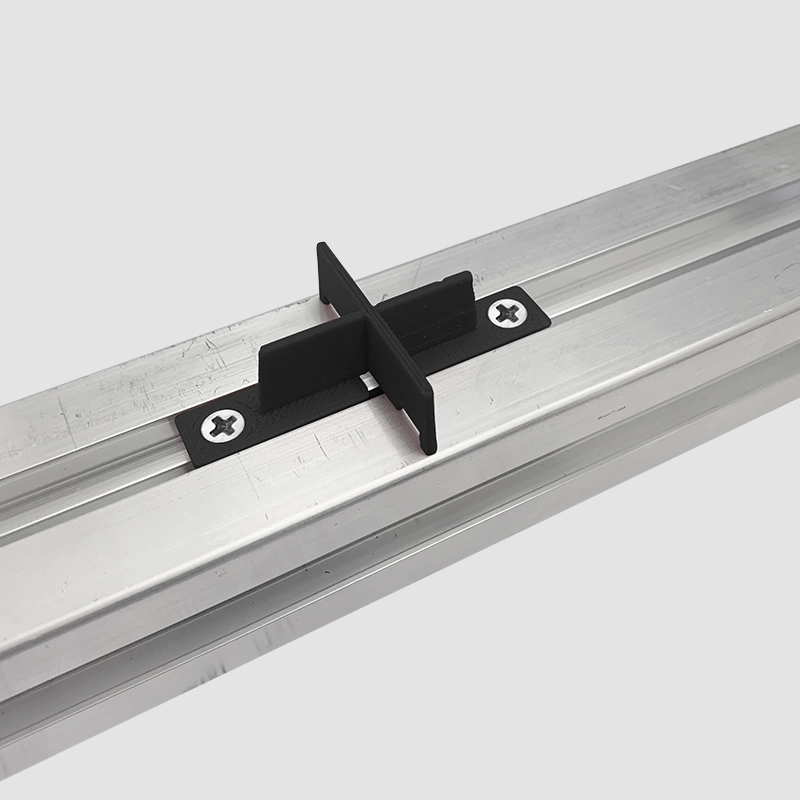

| TER09-2299S/G (A2, A3, A5) | 04 Paving Spacer - 4mm (2mm, 3mm and 5mm) | - - | 200 pcs. | 28,800 pcs. | 1 pc. |

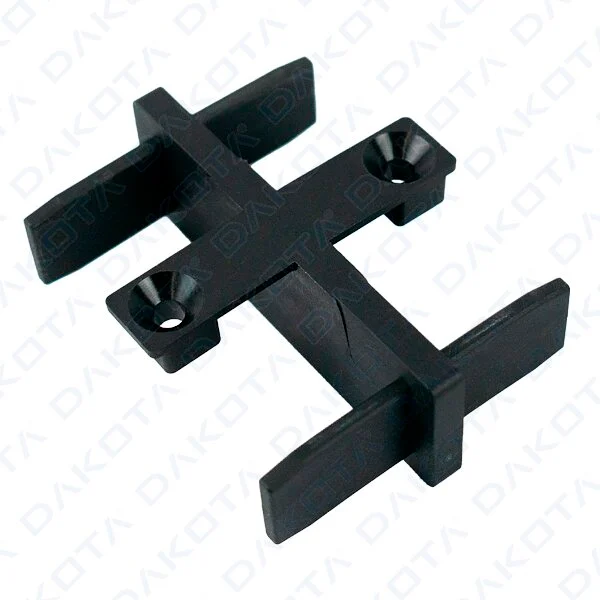

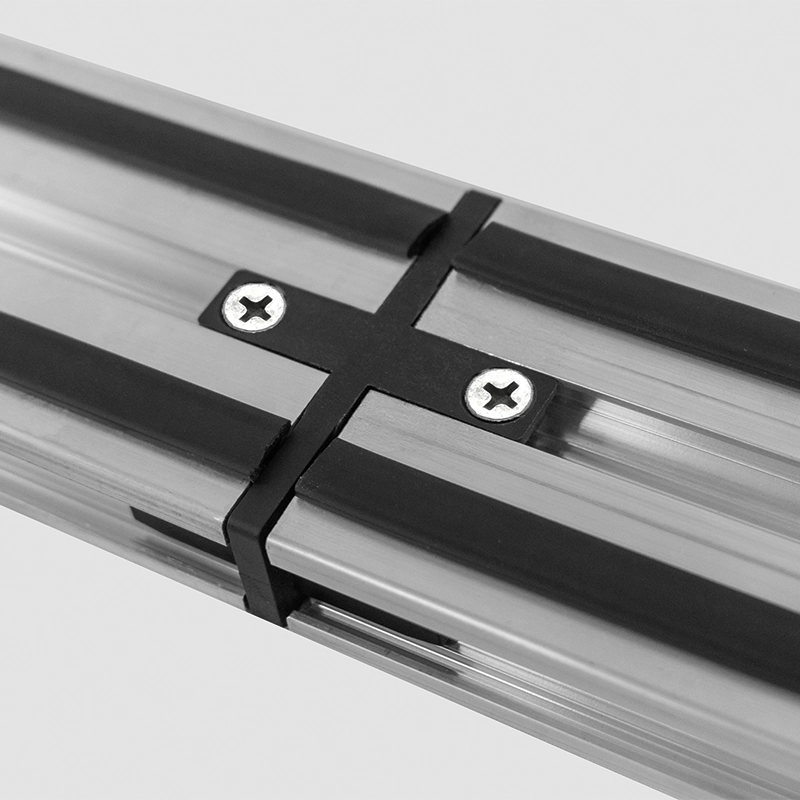

| TER09-2299S/B | 05 Linear Joist Connector | - - | 130 pcs. | 18,720 pcs. | 1 pc. |

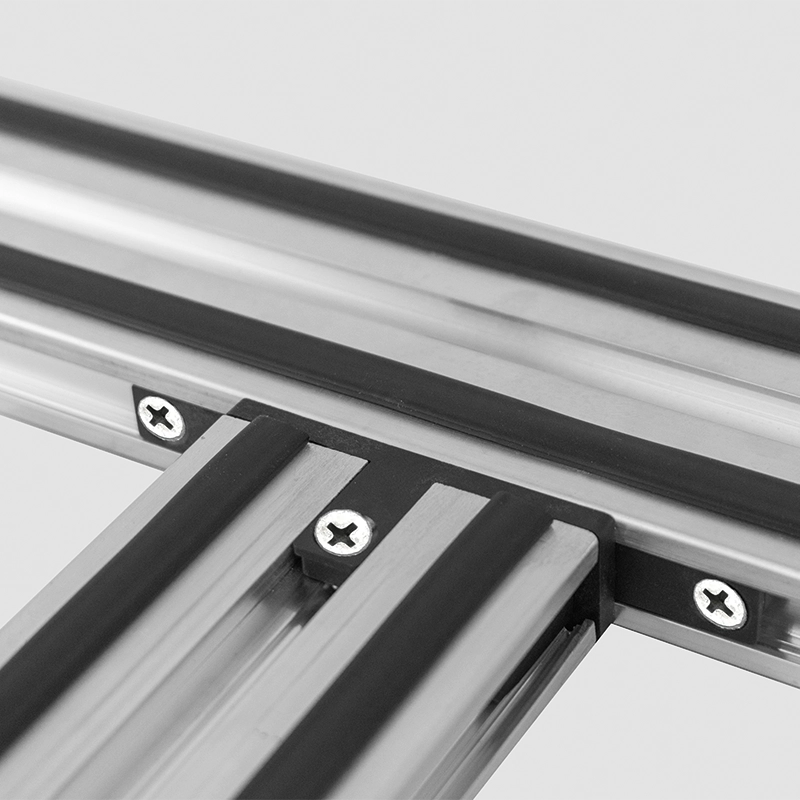

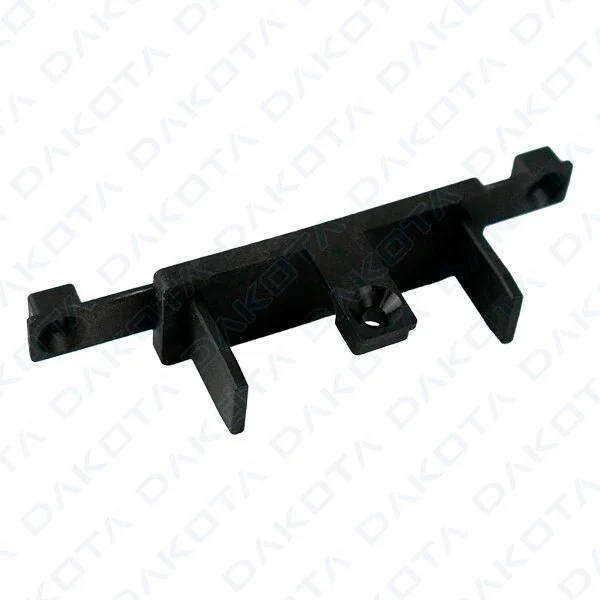

| TER09-2299S/C | 06 “T” Joist Connector | - - | 130 pcs. | 18,720 pcs. | 1 pc. |

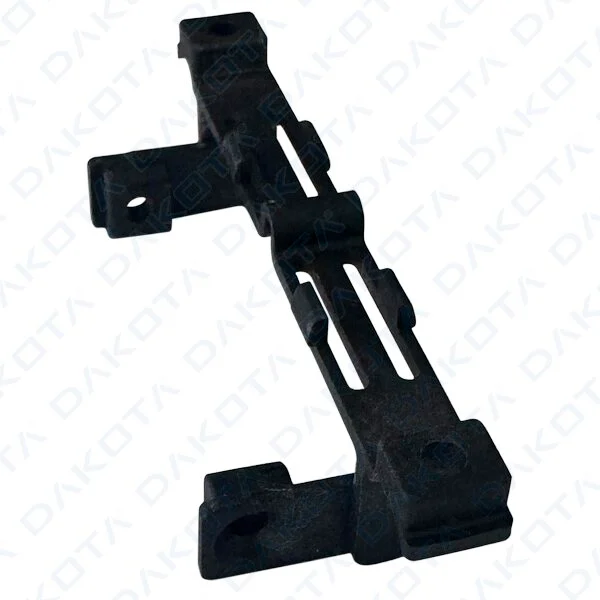

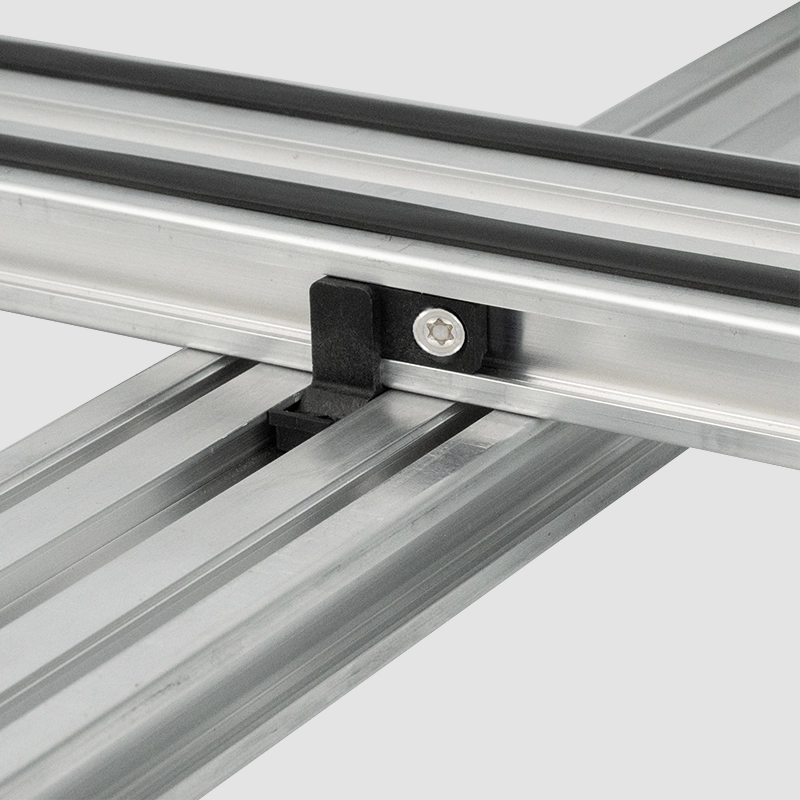

| TER09-2299S/D | 07 Overlap Mounting Joist Connector | - - | 200 pcs. | 28,800 pcs. | 1 pc. |
