Drainage Products

PLUS Catch Basins

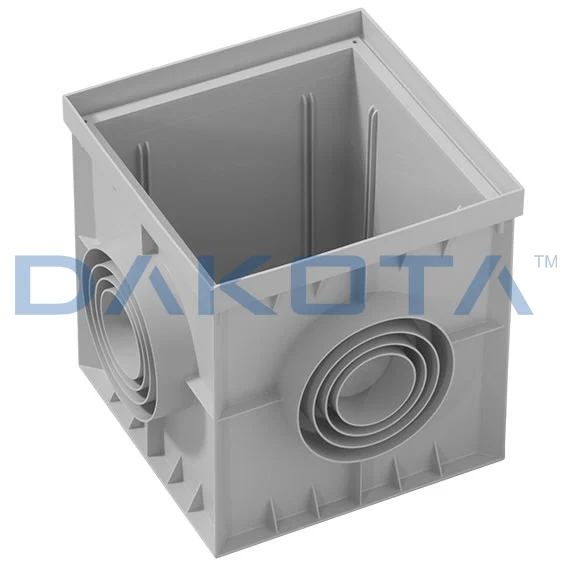

Plastic Catch Basins for Drainage Systems

The "Plus" drainage inspection chambers, also known as a catch basins or catch pits, are available in various sizes, from 200mm to 550mm (8" to  21½") square in grey or green.

Main characteristics:

  • Light weight for easy transport, positioning and installation, even by a single person;

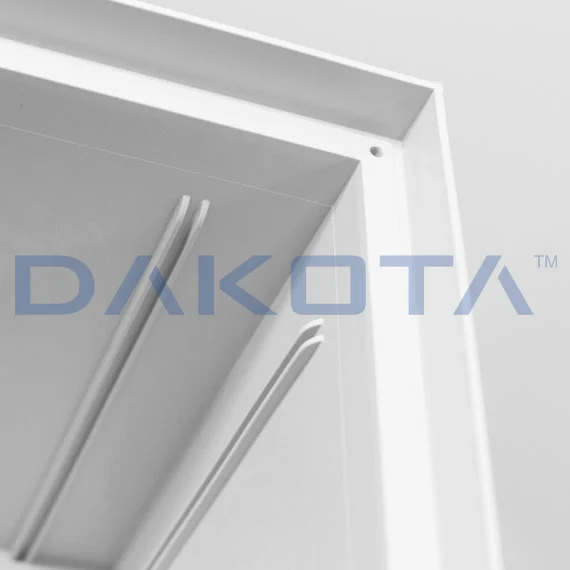

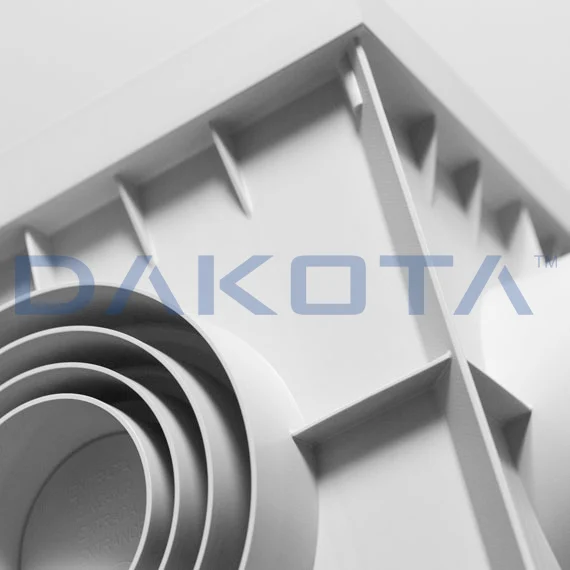

  • High resistance thanks to the reinforcements and ribs at the sides;

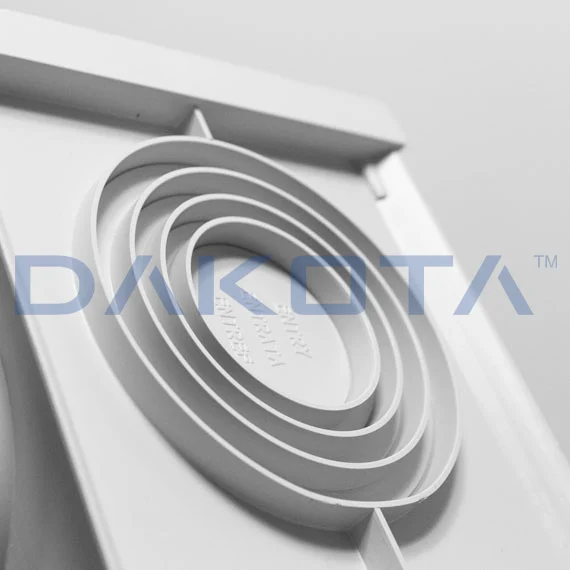

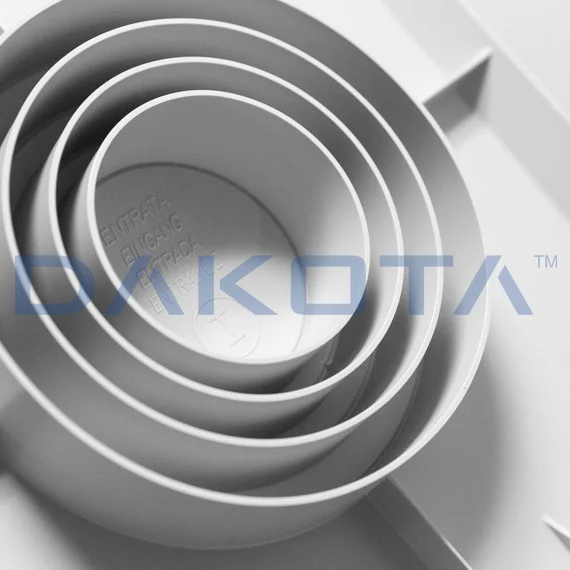

  • Pipes of many sizes can easily be fitted thanks to the special pre-cut concentric shapes for the side holes;
  • Compatible with a range of matched sizes of PP inspection chamber covers and gratings.
  • Slot-in plates available to create siphonic trap for odour control.

Materials: Made of PP (polypropylene).

Use: Used as an alternative to traditional concrete catch basins for rain and storm water collection.

Download Legend
PDF GREEN = Specifications
PDF RED = Technical Datasheet
  • Slider Item 1
  • Slider Item 2
  • Slider Item 3
  • Slider Item 4
  • Slider Item 5
  • Slider Item 6
  • Slider Item 7
CodeProductSize mm (in.) WxLPkg.Pallet Qty.UM
POZ01-1372Catch-Pit Plus200mm x 200mm (8" x 8")1 pc.150 pcs.1 pc.
POZ01-1372SExport Catch-Pit Plus200mm x 200mm (8" x 8")1 pc.240 pcs.1 pc.
POZ01-1372VGreen Catch-Pit Plus200m x 200mm (8" x 8")1 pc.150 pcs.1 pc.
POZ01-1372BCatch-Pit Plus250m x 250mm (10" x 10")1 pc.160 pcs.1 pc.
POZ01-1372BVGreen Catch-Pit Plus250mm x 250mm (10" x 10")1 pc.160 pcs.1 pc.
POZ01-1373Catch-Pit Plus300mm x 300mm (12" x 12")1 pc.48 pcs.1 pc.
POZ01-1373SExport Catch-Pit Plus300mm x 300mm (12" x 12")1 pc.96 pcs.1 pc.
POZ01-1373VGreen Catch-Pit Plus300mm x 300mm (12" x 12")1 pc.48 pcs.1 pc.
POZ01-1374Catch-Pit Plus400mm x 400mm (16" x 16")1 pc.18 pcs.1 pc.
POZ01-1374SExport Catch-Pit Plus400mm x 400mm (16" x 16")1 pc.36 pcs.1 pc.
POZ01-1374Green Catch-Pit Plus400mm x 400mm (16" x 16")1 pc.27 pcs.1 pc.
POZ01-1371Catch-Pit Plus550mm x 550mm (21⁷⁄₁₀" x 21⁷⁄₁₀")1 pc.20 pcs.1 pc.
