Drainage Products

Pegasus Plus 130 (5") Channel Drains

Used for the collection and drainage of rainwater. The Pegasus Plus 130 line is available in a range of colours for use across garage entrances, driveways, patios, pool side, locker rooms and other areas with pedestrian and low density traffic applications. Available with plastic, cast iron, galvanised or stainless steel gratings in a variety of patterns to suit every requirement.

Made to the EN1433 standards, Pegasus 130 channels are made of PP (polypropylene), engineered and reinforced to be highly resistant.

Classifications and Standards

Specification Sheet download symbol
Specification Sheet
Pegasus 130 Flow Rates
  • main pic

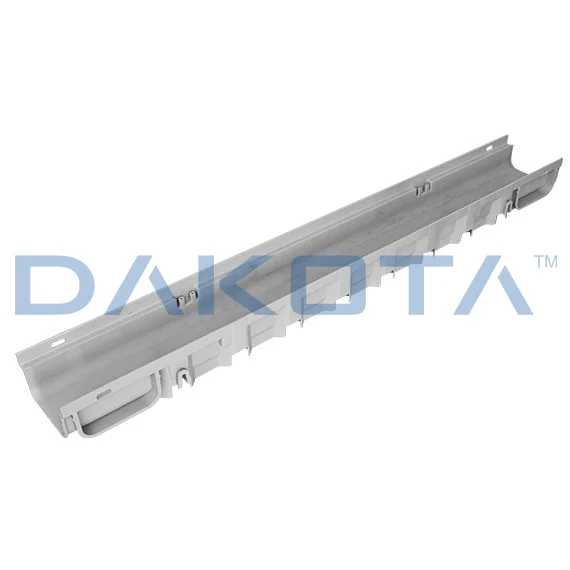

  • full channel

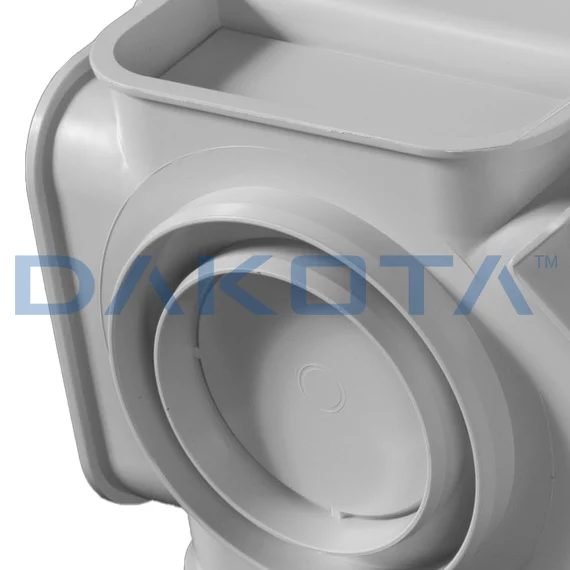

  • Slider Item 3

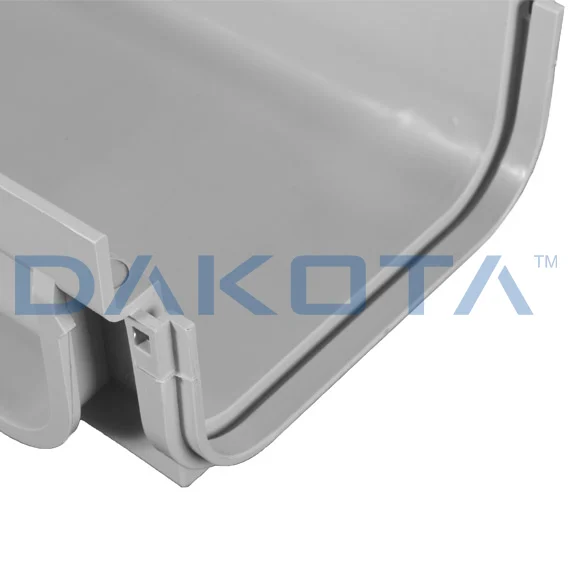

  • Slider Item 4

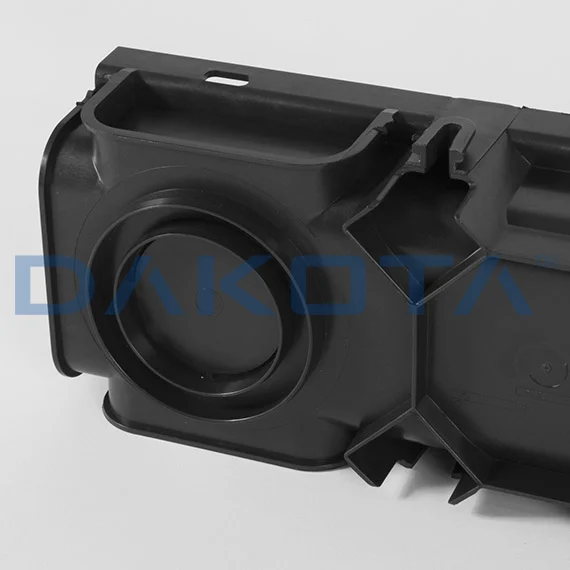

  • Slider Item 1

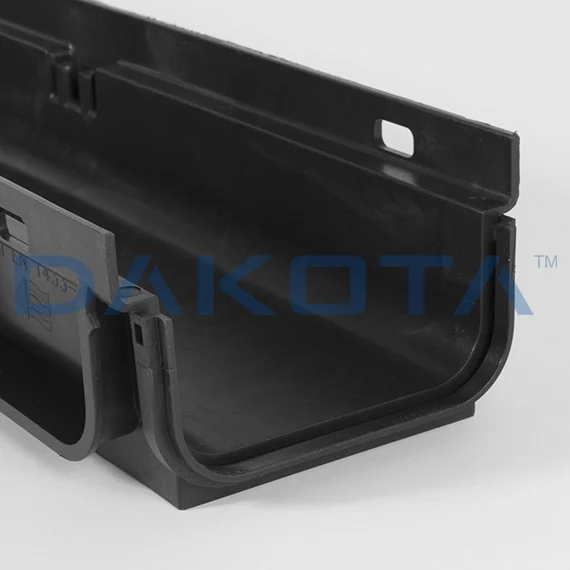

  • Slider Item 1
  • Slider Item 1

Code: POZ91-1300Px
Pegasus Plus 130/75 - 130 x 75 x 1,000mm (5 x 3 x 39⅖")

These channels are available in grey, black, sand* and white. They are manufactured to meet or exceed the EN1433 standards A15, B125 and C250 (subject to the grating being used) for pedestrian or light traffic areas. Bottom outlets are 75mm, 100mm (3", 4") for all colours, or 75mm, 110mm (3", 4⅓") in grey and black.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.   *Sand - special order only.
Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
Pegasus Plus One S Dimensions
  Qty:
96 pcs.

CLASS: A15 - Code: POZ91-1300Px
Pegasus Plus 130/75 - 130 x 75 x 1,000mm (5 x 3 x 39⅖")

CodeRef:ProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ91-1300P01Pegasus Plus 130/75 Grey with Clip100mm x 75mm x 1,000mm
(4" x 3" x 39⅖")		1 pc.96 pcs.1 pc.
POZ91-1300PN02Pegasus Plus 130/75 Black with Clip100mm x 75mm x 1,000mm
(4" x 3" x 39⅖")		1 pc.96 pcs.1 pc.
POZ91-1300PS03Pegasus Plus 130/75 Sand* with Clip100mm x 75mm x 1,000mm
(4" x 3" x 39⅖")		1 pc.96 pcs.1 pc.
POZ91-1300PB04Pegasus Plus 130/75 White with Clip100mm x 75mm x 1,000mm
(4" x 3" x 39⅖")		1 pc.96 pcs.1 pc.
POZ91-1300P105Pegasus Plus 130/75 Grey with Clip - [outlet ø110mm (4⅓")]100mm x 75mm x 1,000mm
(4" x 3" x 39⅖")		1 pc.96 pcs.1 pc.
POZ91-1300PN106Pegasus Plus 130/75 Black with Clip - [outlet ø110mm (4⅓")]100mm x 75mm x 1,000mm
(4" x 3" x 39⅖")		1 pc.96 pcs.1 pc.
* special order only
01
02
03
04
05
06

CLASS: A15 - Code: POZ90-1310Pxx
Pegasus Plus 130/120 - 130 x 120 x 1,000mm (5 x 4¾ x 39⅖")

These channels are available in grey, black, sand* and white. They are manufactured to meet or exceed the EN1433 standards A15, B125 and C250 (subject to the grating being used) for pedestrian or light traffic areas. Bottom outlets are 75mm, 110mm (3", 4⅓").

Note: Measurements shown above relate to OD's (outside diameters) of pipes.
Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
Pegasus Plus One S Dimensions
  Qty:
96 pcs.
Specification sheet

CLASS: A15 - Code: POZ91-1300Px
Pegasus Plus 130/120 - 130 x 120 x 1,000mm (5 x 4¾ x 39⅖")

CodeRef:ProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ90-1310P101Pegasus Plus 130/120 Grey with Clip130mm x 120mm x 1,000mm
(4" x 4¾" x 39⅖")		1 pc.96 pcs.1 pc.
POZ90-1310PN102Pegasus Plus 130/120 Black with Clip130mm x 120mm x 1,000mm
(4" x 4¾" x 39⅖")		1 pc.96 pcs.1 pc.
POZ90-1310PS103Pegasus Plus 130/120 Sand* with Clip130mm x 120mm x 1,000mm
(4" x 4¾" x 39⅖")		1 pc.96 pcs.1 pc.
POZ90-1310PB104Pegasus Plus 130/120 White with Clip130mm x 120mm x 1,000mm
(4" x 4¾" x 39⅖")		1 pc.96 pcs.1 pc.
* special order only
01
02
03
04

Drainage Channel Accessories - Pegasus Plus 130

End caps, Lock system (anchor bracket) and gasket for channels.

Materials used:  PP for the end caps and pipe connection, PE-HD (high density polyethylene) for the Lock system and rubber gasket for the rounded connection.

Use:  The end caps and the bulkheads are used as terminals for the channels, the Lock system is used to fasten the grating inside the channel (as required by European Regulation EN 1433). Connector ø 110 mm (4⅓"), together with the rubber gasket, converts the lower outlet from ø 100 to ø 110mm (4 to 4⅓").
See full range of Pegasus 130 (5") wide channels pre-assembled with gratings.

See all the gratings that will fit the Pegasus 130 (5") wide channels.

 Open & Closed End Caps - grey - 130/75 (2 pcs/pack)

Code: POZ95-1300PM
Size: 130 x 75mm (5 x 3")
Pallet Qty: 4,000

Open & Closed End Caps - Black - 130/75 (2 pcs/pack)

Code: POZ95-1300PMN
Size: 130 x 75mm (5 x 3")
Pallet Qty: 4,000

Open & Closed End Caps - Sand - 130/75 (2 pcs/pack)

Code: POZ95-1300PMS
Size: 130 x 75mm (5 x 3")
Pallet Qty: 4,000

Open & Closed End Caps - White - 130/75 (2 pcs/pack)

Code: POZ95-1300PMB
Size: 130 x 75mm (5 x 3")
Pallet Qty: 4,000

130/75 130 Locking Kit (screws & bolts included)

Code: POZ95-1307B
Size: -
Pallet Qty: 4,000

Gasket Seal for Channel

Code: POZ95-1319
Size: 100/110 mm (4⅓")
Pallet Qty: 4,000

Pipe Connection
Gry - 110mm (4⅓")
 e

Code: POZ95-1321
Size: 110 mm (4⅓")
Pallet Qty: 2,000

Pipe Connection
Black - 110mm (4⅓")


Code: POZ95-1321N
Size: 110 mm (4⅓")
Pallet Qty: 2,000

Open & Closed End Caps - Grey - 130/120 (2 pack)

Code: POZ90-1310T
Size: 130 x 120mm (5 x 4¾")
Pallet Qty: 750

Open & Closed End Caps - Black - 130/120 (2 pack)

Code: POZ90-1310TN
Size: 130 x 120mm (5 x 4¾")
Pallet Qty: 750

Open & Closed End Caps - Sand - 130/120 (2 pack)

Code: POZ90-1310TS
Size: 130 x 120mm (5 x 4¾")
Pallet Qty: 750

Open & Closed End Caps - White - 130/120 (2 pack)

Code: POZ90-1310TB
Size: 130 x 120mm (5 x 4¾")
Pallet Qty: 750

Skat 130/120 Locking Kit
(bolts included)

Code: POZ95-1310B
Size: -
Pallet Qty: 4,000

Pegasus 130/75 (5" x 3") Display Kits - 3m (10 ft)

Kits comprise 3 PP channels dimensions 130mm x 75mm x 1,000mm (5" x 3" x 39⅖") in grey or black. Supplied complete with 1 set of end caps and a choice of PP or galvanised gratings. Packed in a retail display carton. Sold as complete kits only.

Materials - Channels made of PP (polypropylene), gratings made of PP or galvanised steel.

Use - Used for the collection and drainage of rainwater, particularly in the connection between ramps and garage entrances and/or for sub-surface rooms.

CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ91-1300KC33 Pegasus Plus Channels - 130/75 Grey, 3 Extra Strong Grey PP gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box
POZ91-1300KZ3 Pegasus Plus Channels - 130/75 Grey, 3 Galvanised gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box
POZ91-1300KNC33 Pegasus Plus Channels - 130/75 Black, 3 Extra Strong Black PP gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box
POZ91-1300KNZ3 Pegasus Plus Channels - 130/75 Black, 3 Galvanised gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box

Pegasus 130/75 (5" x 3") Bundle Kits - 3m (10 ft)

Kits comprise 3 PP channels dimensions 130mm x 75mm x 1,000mm (5" x 3" x 39⅖") in grey or black. Supplied complete with 1 set of end caps and a choice of PP or galvanised gratings. Shrink-wrapped in bundles. Sold as complete kits only.

Materials - Channels made of PP (polypropylene), gratings made of PP or galvanised steel.

Use - Used for the collection and drainage of rainwater, particularly in the connection between ramps and garage entrances and/or for sub-surface rooms.

CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ91-1301KC33 Pegasus Plus Channels - 130/75 Grey, 3 Extra Strong Grey PP gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box
POZ91-1301KZ3 Pegasus Plus Channels - 130/75 Grey, 3 Galvanised gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box
POZ91-1301KNC33 Pegasus Plus Channels - 130/75 Black, 3 Extra Strong Black PP gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box
POZ91-1301KNZ3 Pegasus Plus Channels - 130/75 Black, 3 Galvanised gratings with clip, 1 End Cap Set. 3m (10').130 x 75 x 1,000mm channels
(5 x 3 x 39⅖")		3 pcs.20 pcs.box

Pegasus 130/120 (5" x 4¾") Bundle Kits - 3m (10 ft)

Kits comprise 3 PP channels dimensions 130mm x 120mm x 1,000mm (5" x 4¾" x 39⅖") in grey or black. Supplied complete with 1 set of end caps and a choice of PP or galvanised gratings. Shrink-wrapped in bundles. Sold in complete kits only.

Materials - Channels made of PP (polypropylene), gratings made of PP or galvanised steel.

Use - Used for the collection and drainage of rainwater, particularly in the connection between ramps and garage entrances and/or for sub-surface rooms.

CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
POZ91-1303KC33 Pegasus Plus Channels - 130/120 Grey, 3 Extra Strong Grey PP gratings with clip, 1 End Cap Set. 3m (10').130 x 120 x 1,000mm channels
(5 x 4¾ x 39⅖")		3 pcs.20 pcs.box
POZ91-1303KZ3 Pegasus Plus Channels - 130/120 Grey, 3 Galvanised gratings with clip, 1 End Cap Set. 3m (10').130 x 120 x 1,000mm channels
(5 x 4¾ x 39⅖")		3 pcs.20 pcs.box
POZ91-1303KNC33 Pegasus Plus Channels - 130/120 Black, 3 Extra Strong Black PP gratings with clip, 1 End Cap Set. 3m (10').130 x 120 x 1,000mm channels
(5 x 4¾ x 39⅖")		3 pcs.20 pcs.box
POZ91-1303KNZ3 Pegasus Plus Channels - 130/120 Black, 3 Galvanised gratings with clip, 1 End Cap Set. 3m (10').130 x 120 x 1,000mm channels
(5 x 4¾ x 39⅖")		3 pcs.20 pcs.box
