Drainage Products

Taurus 200 (8") Channel Drains

Used for the collection and drainage of rainwater and for the discharge of liquids for industrial use. The HDPE material has an excellent resistance to chemicals and organic agents and it is “self-cleaning”. This channel is shock resistant, unbreakable and can guarantee high performances in temperatures from -40° C to 100° C (-40° F to 212° F). It is available in black, in different designs and depths.

Classifications and Standards

Technical Datasheet download symbol
Specification Sheet

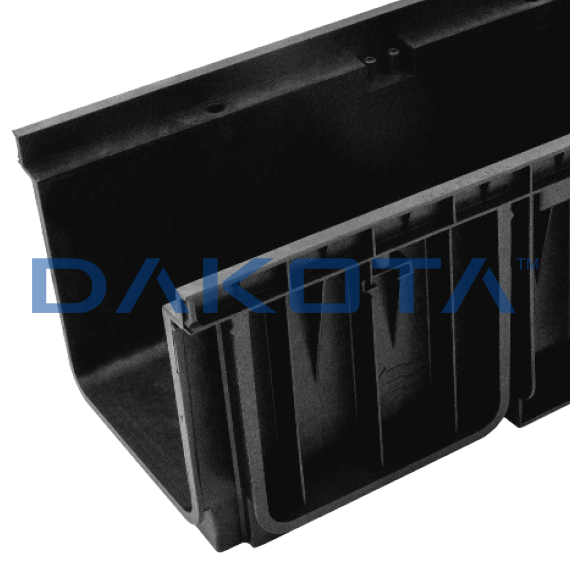

  • main pic

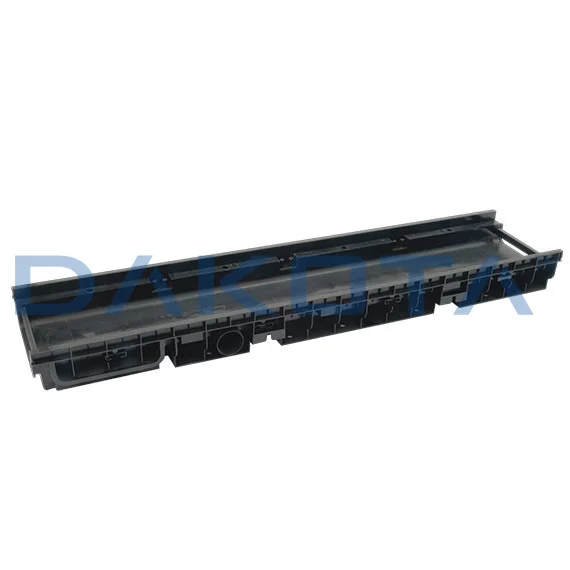

  • full channel

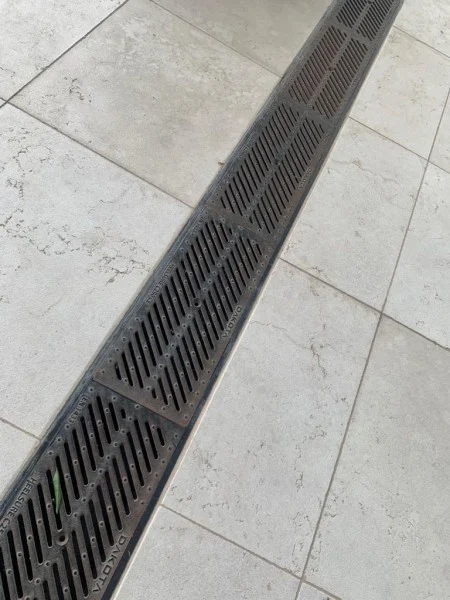

  • Slider Item 3

Code: POZ92-2004P
Taurus 200/40 - 200 x 40 x 1,000mm (8 x 1⅗ x 39⅖")

Lateral outlet diameter is 50mm (2"), bottom outlet diameters are 110, 140mm (4⅓, 5½"). When this Taurus Channel is configured with reinforcing edge rails it should be matched with the POZ95-1317 profile to allow loads up to D400.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.
Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
70 pcs.

Code: POZ92-2004PPG
Taurus 200/40 - 200 x 40 x 1,000mm (8 x 1⅗ x 39⅖")

Lateral outlet diameter is 50mm (2"), bottom outlet diameters are 110, 140mm (4⅓, 5½"). This Taurus Channel is prepared ready for use with the extra heavy duty POZ95-1317/ZP profile. The POZ95-1317/ZP profile allows loads up to F900 with the appropriate grating/s.

Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
70 pcs.

Code: POZ92-2007P
Taurus 200/75 - 200 x 75 x 1,000mm (8 x 3 x 39⅖")

Lateral outlet diameters are 50, 63mm (2, 2½"), bottom outlet diameters are 110, 140 mm (4⅓, 5½"). When this Taurus Channel is configured with reinforcing edge rails it should be matched with the POZ95-1317 profile to allow loads up to D400.

Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
50 pcs.

Code: POZ92-2007PGD
Taurus 200/75 - 200 x 75 x 1,000mm (8 x 3 x 39⅖")

Lateral outlet diameters are 50, 63mm (2, 2½"), bottom outlet diameters are 110, 140mm (4⅓, 5½"). This Taurus Channel is prepared ready for use with the extra heavy duty POZ95-1317/ZP profile. The POZ95-1317/ZP profile allows loads up to F900 with the appropriate grating/s.

Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
50 pcs.

Code: POZ92-2015P
Taurus 200/150 - 200 x 150 x 1,000mm (8 x 6 x 39⅖")

Lateral outlet diameters are 50, 63mm (2, 2½"), bottom outlet diameters are 110, 140mm (4⅓, 5½"). When this Taurus Channel is configured with reinforcing edge rails it should be matched with the POZ95-1317 profile to allow loads up to D400.

Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
25 pcs.

Code: POZ92-20015PGD
Taurus 200/150 - 200 x 150 x 1,000mm (8 x 6 x 39⅖")

Lateral outlet diameters are 50, 63mm (2, 2½"), bottom outlet diameters are 110, 140mm (4⅓, 5½"). This Taurus Channel is prepared ready for use with the extra heavy duty POZ95-1317/ZP profile. The POZ95-1317/ZP profile allows loads up to F900 with the appropriate grating/s.

Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
25 pcs.

Drainage Channel Accessories - Taurus 200

End caps, galvanised and stainless steel reinforcement profiles and anchor bracket.
Materials: HDPE (high density polyethylene) for end caps, galvanised for profiles and anchor bracket.

Use
The end caps are used as terminals for the channel. The different models (sold in sets) enable blocking the waterflow and/or to guarantee the connection to an outflow pipe (thanks to the pilot hole). The edge rails are used to reinforce the edge of the channel edges.
See Taurus 200 (8") wide channels pre-assembled with gratings.

See all the gratings that will fit the Taurus 200 (8") wide channels.

Open & Closed End Cap Set for 200/40

Code: POZ95-2004PT
Size: 200 x 40mm (8 x 1½")
Pallet Qty: 2,000

Open/Closed End Cap Set for 200/75

Code: POZ95-2007PT
Size: 200 x 75mm (8 x 3")
Pallet Qty: 1,600

Open/Closed End Cap Set


Code: POZ95-2015PT
Size: 200 x 150mm (8 x 6")
Pallet Qty: 960

Locking System
200 - Kit

Code: POZ95-1320BN
Size: 200mm (8")
Pallet Qty: 3,200

Galvanised Locking System - 200 Kit

Code: POZ95-1320BZ
Size: 200mm (8")
Pallet Qty: 4,000

Heavy Galvanised Steel Edge Rail - 20mm (¾") h.

Code: POZ95-1317/ZP
Size: 1,000mm (39⅖")
Pallet Qty: 500

Anchor Bracket
for Edge Rail

Code: POZ95-1317ZAN
Size: 130mm (5")
Pallet Qty: 3,000

Galvanised Steel Edge Reinforcement Rail

Code: POZ95-1317
Size: 1,000mm (39⅖")
Pallet Qty: 500
