Outdoor Flooring Products

Universal Joist Head

to convert Arkimedes paver supports

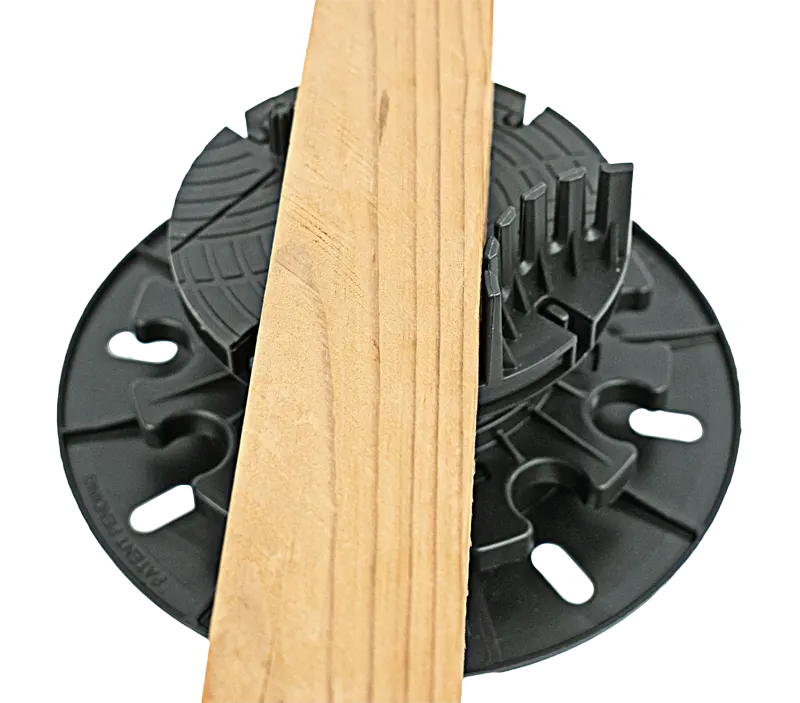

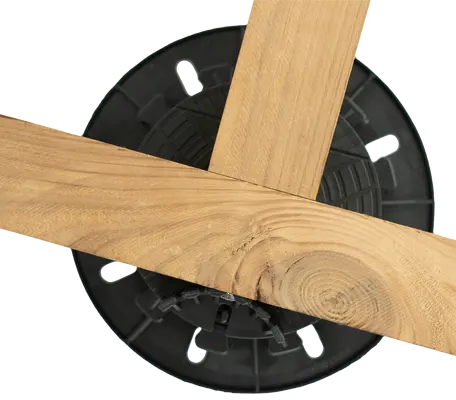

Universal decking head for converting Arkimedes paver supports to enable them to support joists. Steel, aluminium or wood joists of any size up to a maximum width of 75mm (3'') can be used. The pin can also be used to make “T” connections between joists.

  • Converts Arkimedes Paver Supports into Joist supports
  • Works with joist widths minimum 25mm (1") to maximum 75mm (3")
  • Equipped with self-centering of the joist functionality due to the 5 fixing slots.

The installation of the head increases the total height of the support by 11.5mm (⁷⁄₁₆'').

Made of recycled PP (polypropylene).

Note: Not suitable for Archimedes 10

Universal Joist Support for Dakota Arkimedes paver pedestals
CodeProductSize mm (in.)PkPallet Qty.UM
TER09-1142Universal decking head conversion for Arkimedes Paving Supportsø 122mm x h.51mm
(ø 4¾" x 2")		30 pcs.1,350 pcs.1 pc.
Download Legend
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
