Adjustable from 10mm to 15mm (⅜" to ⁹⁄₁₆") as standard, or 15mm to 20mm (⁹⁄₁₆" to ¾") using the 5mm (³⁄₁₆") height extender plate supplied with each pedestal.
Base laying surface: 191 cm² (29.6 sq.in). Head diameter: 156 mm (6")
Available versions:
The base includes water drainage channels.
Made of recycled PP (polypropylene).
Used in external areas for terraces, pavements and decks. Internally for tiled and wood flooring.
| Code | Product | Size mm (in.) WxDxL | Pk | Pallet Qty. | UM |
|---|---|---|---|---|---|
| TER09-1147/4A2M | Arkimedes 10 - Paving Spacer tabs 2mm (⁵⁄₆₄") | from 10mm - 20mm (⅜" - ¾") | 30 pcs. | 810 pcs. | 1 pc. |
| TER09-1147/4A4M | Arkimedes 10 - Paving - Spacer tabs 4mm (⁵⁄₃₂") | from 10mm - 20mm (⅜" - ¾") | 30 pcs. | 810 pcs. | 1 pc. |
| TER09-1147/1A | Arkimedes 10 - Decking Joist Support | from 10mm - 20mm (⅜" - ¾") | 30 pcs. | 810 pcs. | 1 pc. |
| TER09-1147/G | 01 Anti-noise rubber shim | ø 157mm x 1mm (6³⁄₁₆" x ¹⁄₂₅) | 120 pcs. | 15,120 pcs. | 1 pc. |
| TER09-1144/T | 02 Anti-noise Rubber Base Pad - round | ø 200mm x 3mm (ø 8" x ⅛") | 30 pcs. | 10,800 pcs. | 1 pc. |

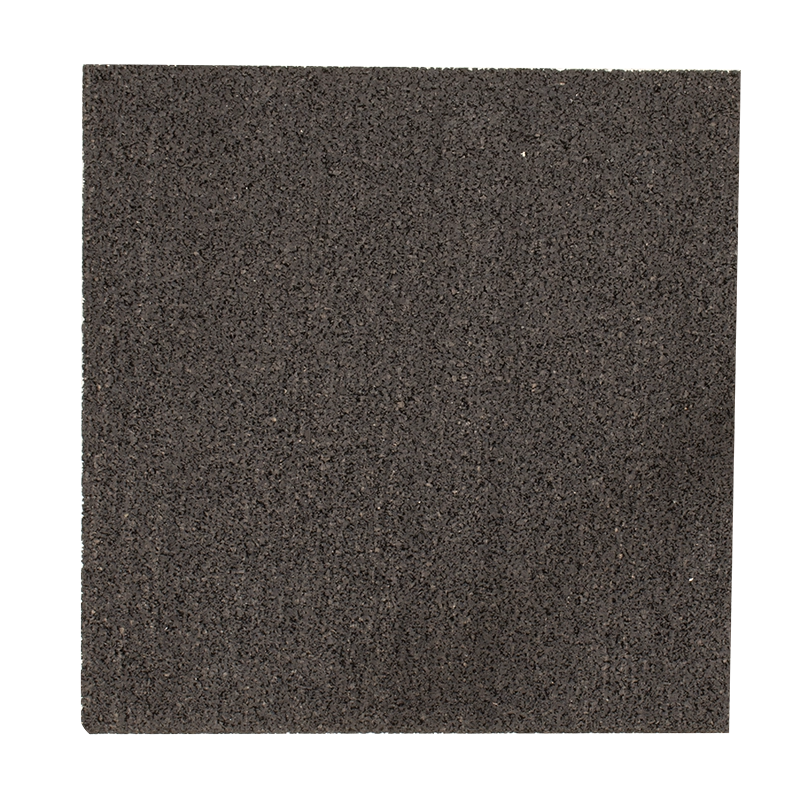

| TER09-1144/P | 03 Anti-noise Rubber Base Pad - square | 200mm x 200mm x 3mm (8" x 8" x ⅛") | 80 pcs. | 9,600 pcs. | 1 pc. |
