Arkimede® 115 - extra high profile

Pedestal System & Risers - 115mm to 220mm
(4½" to 8⅔'')weight symbol

Each pedestal comprises a base stand, threaded adjustment collar and support head. Adjustable from 115mm to 220mm (4½ "- 8⅔'') as standard. Clip in extenders 100mm (4'') in height are available.

Base laying surface: 314 cm² (49 sq.in). Head diameter: 120mm (4¾").

Available versions:

  • paver support with 4 spacer tabs of 2mm (⁵⁄₆₄") thickness
  • paver support with 4 spacer tabs of 4mm (⁵⁄₃₂") thickness
  • joist support with 1 tab for decking and flooring

The base includes water drainage channels.

Made of recycled PP (polypropylene).

Used in external areas for roof gardens, terraces, pavements and decks.

Download Legend
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
Decking
Paving
Decking
Paving

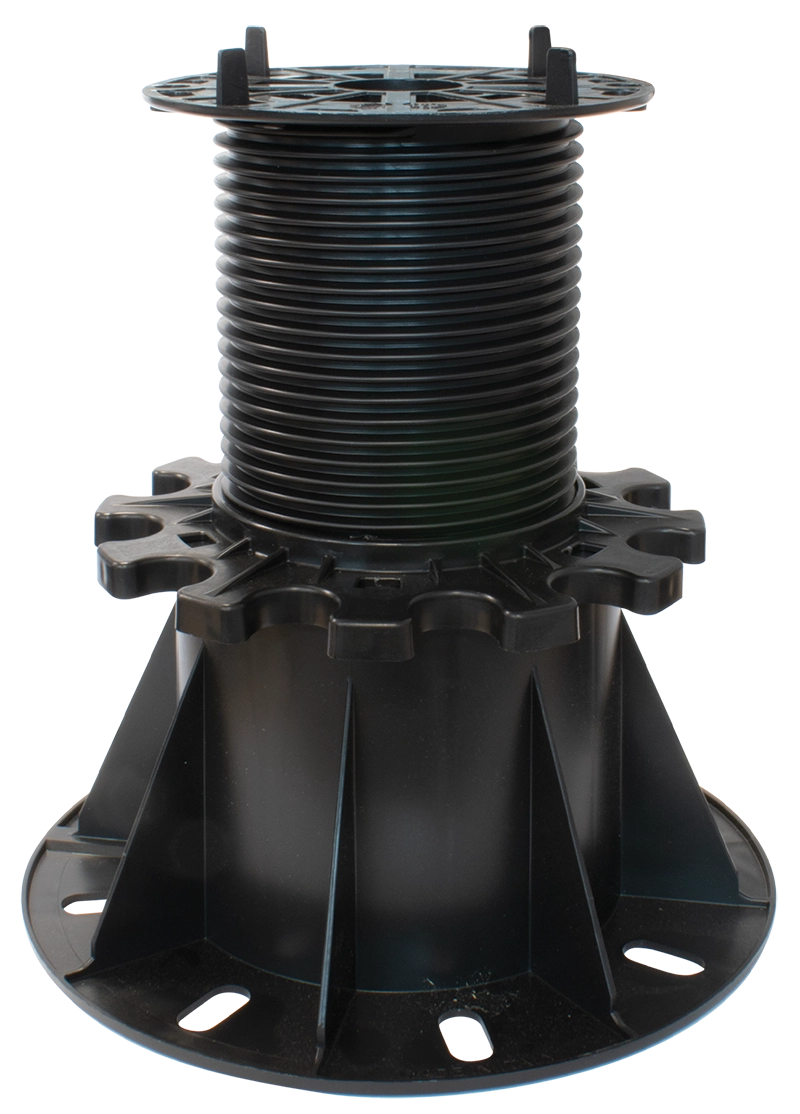

Arkimedes 35 Paver Pedestal

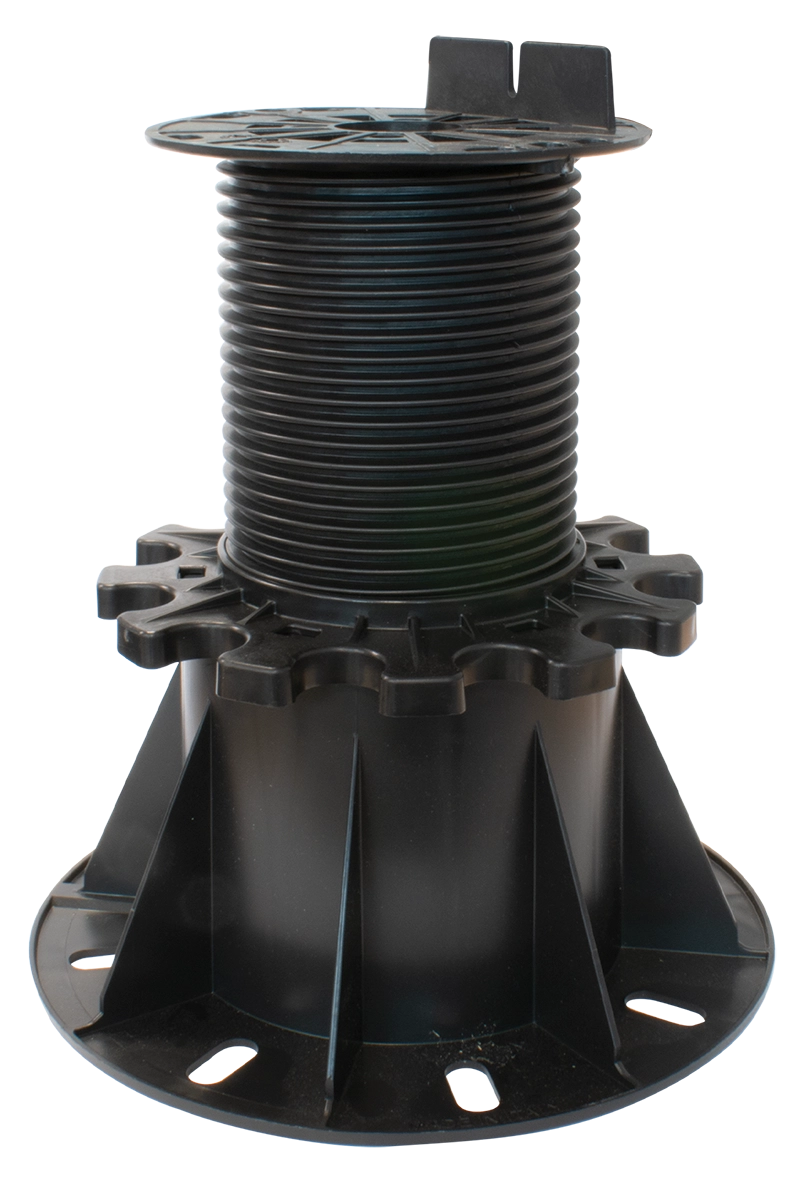

Arkimedes 35 Joist Pedestal
CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
TER09-1173/4A2MArkimedes 115 - Paving Spacer tabs 2mm (⁵⁄₆₄'')115mm to 220mm
(4½" - 8⅔'')		15 pcs.450 pcs.1 pc.
TER09-1173/4A4MArkimedes 115 - Paving Spacer tabs 4mm (⁵⁄₃₂'')115mm to 220mm
(4½" - 8⅔'')		15 pcs.450 pcs.1 pc.
TER09-1173/1AArkimedes 115 - Decking 115mm to 220mm
(4½" - 8⅔'')		15 pcs.450 pcs.1 pc.

Accessories

Dakota Arkimedes 100mm (4") height extender
01
Acoustic Rubber Shim Ring
02
03
Square 8" Rubber Base Pad
04
CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
TER09-1143/P10001 Arkimedes 100mm (4") Height Extender100mm (4")30 pcs.1,200 pcs.1 pc.
TER09-1143/G02 Arkimedes - Acoustic Rubber Shim for pavingø 120mm x 2mm
(ø 4¾" x ⁵⁄₆₄")		180 pcs.16,200 pcs.1 pc.
TER09-1144/T03 Anti-noise Rubber Base Pad - roundø 200mm x 3mm
(ø 8" x ⅛")		30 pcs.10,800 pcs.1 pc.
TER09-1144/P04 Anti-noise Rubber Base Pad - square200mm x 200mm x 3mm
(8" x 8" x ⅛")		80 pcs.9,600 pcs.1 pc.
