Outdoor Flooring Products

Arkimede® 18 - low profile

Pedestal System & Risers - 18mm to 36mm
(¾" to 1​⁷⁄₁₆")weight symbol

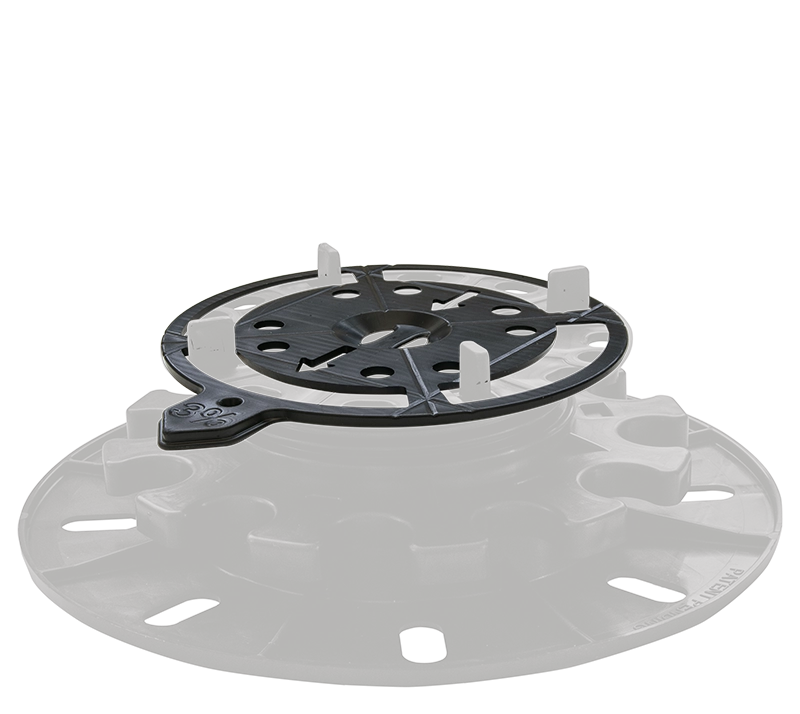

Each pedestal comprises a base plate, extender ring, threaded adjustment collar and support head. Adjustable from 18mm to 27mm (¾" to 1¹⁄₁₆") as standard, or 27mm to 36mm (1¹⁄₁₆" to 1​⁷⁄₁₆") with the 9mm (⅜") extender ring supplied pre-assembled with each pedestal.

Base laying surface: 314 cm² (49 sq.in). Head diameter: 120mm (4¾").

Available versions:

  • paver support with 4 spacer tabs of 2mm (⁵⁄₆₄") thickness
  • paver support with 4 spacer tabs of 4mm (⁵⁄₃₂") thickness
  • joist support with 1 tab for decking and flooring

The base includes water drainage channels.

Made of recycled PP (polypropylene).

Used in external areas for roof gardens, terraces, pavements and decks. Internally for tiled and wood flooring.

Download Legend
PDF GREEN= Specification Sheet
PDF RED = Technical Datasheet
Decking
Paving
Decking
Paving
Arkimedes 18 Paver Pedestal
Arkimedes 18 Joist Pedestal
CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
TER09-1145/4A2MArkimedes 18 - Paving Spacer tabs 2mm (⁵⁄₆₄'')18mm to 36mm
(¾" - 1⁷⁄₁₆")		30 pcs.1,350 pcs.1 pc.
TER09-1145/4A4MArkimedes 18 - Paving Spacer tabs 4mm (⁵⁄₃₂'')18mm to 36mm
(¾" - 1⁷⁄₁₆")		30 pcs.1,350 pcs.1 pc.
TER09-1145/1AArkimedes 18 - Decking 18mm to 36mm
(¾" - 1⁷⁄₁₆")		30 pcs.1,200 pcs.1 pc.

Accessories

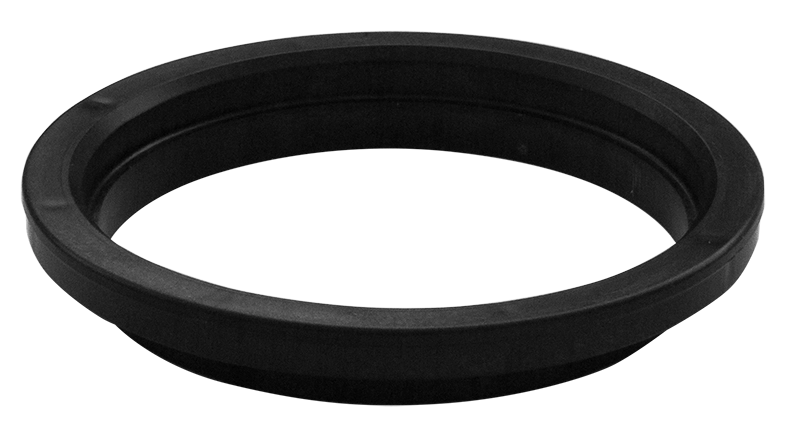

Arkimedes 18 height extender
01
Acoustic Rubber Shim Ring
02
Circular 8" Rubber Base Pad
03
Square 8" Rubber Base Pad
04
CodeProductSize mm (in.) WxDxLPkPallet Qty.UM
TER09-1145/P901 Arkimedes 18 - 9mm (⅜") Height Extender9mm
(⅜")		30 pcs.15,120 pcs.1 pc.
TER09-1143/G02 Arkimedes - Acoustic Rubber Shim for pavingø 120mm x 2mm
(ø 4¾" x ⁵⁄₆₄")		180 pcs.16,200 pcs.1 pc.
TER09-1144/T03 Anti-noise Rubber Base Pad - roundø 200mm x 3mm
(ø 8" x ⅛")		30 pcs.10,800 pcs.1 pc.
TER09-1144/P04 Anti-noise Rubber Base Pad - square200mm x 200mm x 3mm
(8" x 8" x ⅛")		80 pcs.9,600 pcs.1 pc.
