Drainage Products

DAK-STORM THE STORMWATER SYSTEM

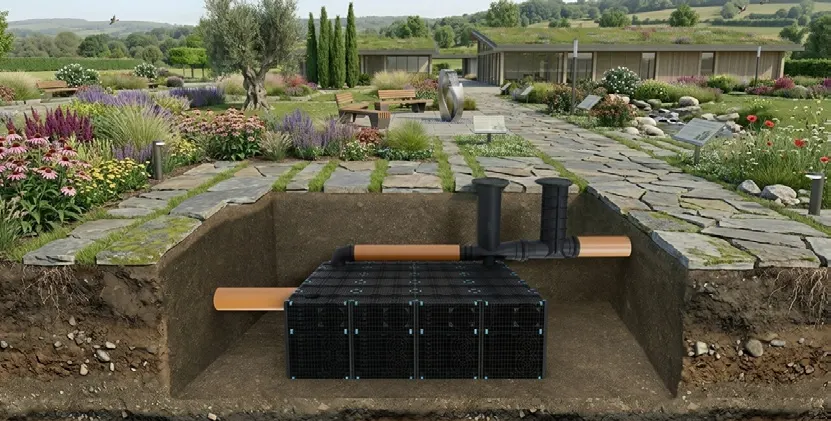

DAK-Storm is a highly efficient, underground modular system for stormwater management in urban, residential, and infrastructure settings. Manufactured from high-strength injection-moulded polypropylene (PP) drainage blocks, it creates vast subterranean reservoirs for water storage, lamination (attenuation)*, or dispersion. By holding large volumes of rainwater below ground, DAK-Storm frees up valuable surface space while mitigating flood risk, recharging natural aquifers, and enabling water reuse — transforming a potential liability into a sustainable asset for modern cities.

*Lamination (attenuation) is a storm water management technique where excess rainwater is temporarily held in underground reservoirs and then discharged at a controlled, gradual rate. This delays the rush of water into sewers and waterways, smoothing out storm surges and protecting surrounding areas from flooding - turning a sudden downpour into a manageable, slow-release process.

Why choose DAK-Storm

  • Maximum volume efficiency — greater storage capacity in a smaller footprint;
  • Certified strength — uncompromising structural integrity;
  • Fully modular — adaptable to any project requirement;
  • Smart logistics — streamlined from warehouse to site;
  • Easy inspection and maintenance — ensuring long-term performance;
  • Eco-compatible — 100% recyclable materials.

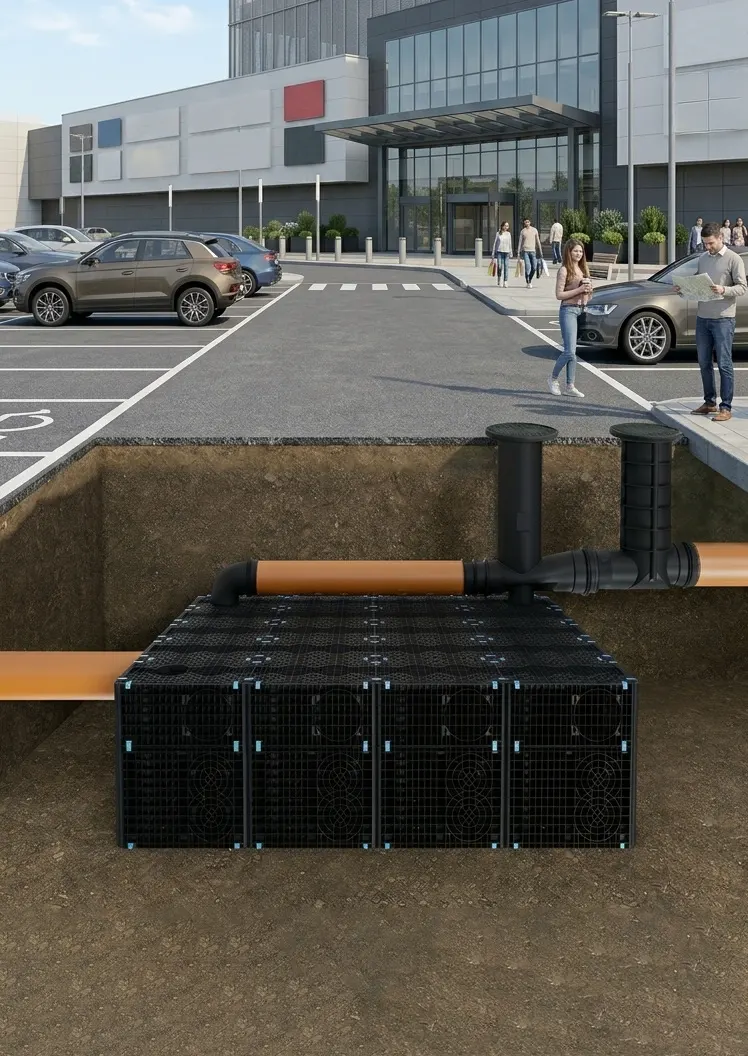

DAK-Storm storwater Management System

Solutions

DAK-Storm is so versatile that it can be used to build different types of installations for optimised management of stormwater:

Draining system (hydrological
invariance)

Mixed systems
(infiltration + lamination)

Attenuation system (storage
reservoirs - hydraulic invariance)

System for stormwater recovery
and reuse

Technical specifications of the system

  • Material: injection moulded, high resistance Polypropylene (PP-H).
  • Colour: Black.
  • Dimensions of module (LxDxH): 100x60x72 cm
  • Net volume of module: 0.415 m3
  • Cavity content: > 96%
  • Module capacity: 415 L
  • Module weight: 18,40 kg
  • Half module weight: 9.20 kg
  • Compressive strength (vertical): 380 kN/m2
  • Certifications: EN 17152-1

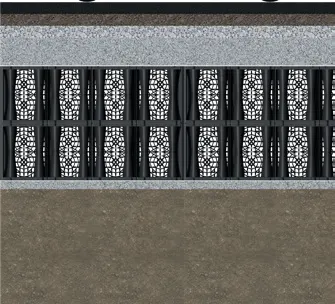

LOAD CLASSES

SLW 30
SLW 60

Pedestrian areas,
cycling lanes, green areas, pavements

DAK-Storm - Half Module

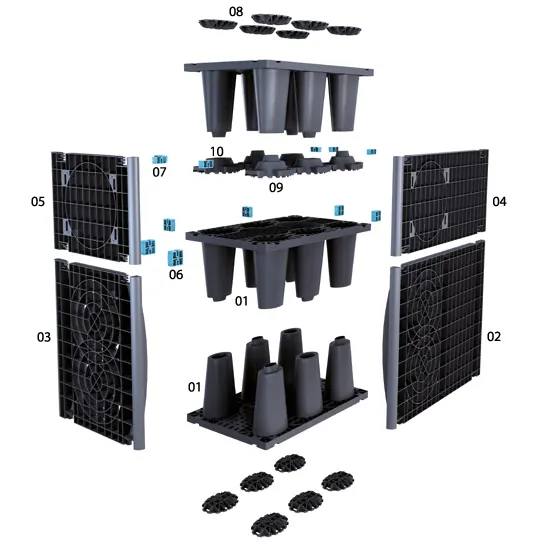

01 - Half Module


Code:
MET01-1001
Size mm:
1,000 x 600 x 39
Pallet Qty:
74
UM:
pc.
DAK-Storm - Half Module

01 - Half Module with Inspection Access

Code:
MET01-1001F
Size mm:
1,000 x 600 x 39
Pallet Qty:
74
UM:
pc.
DAK-Storm - Half Module

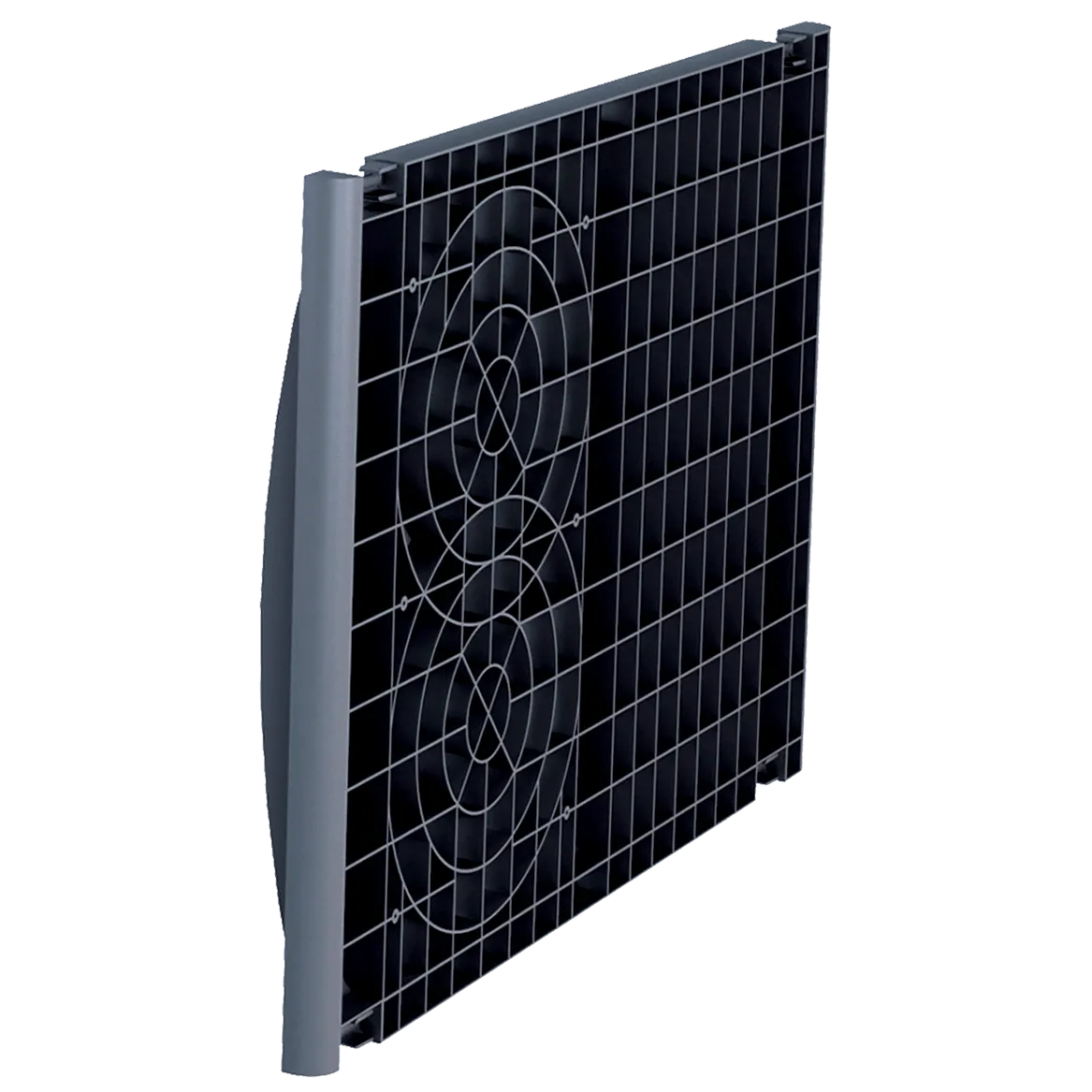

02 - Side Grids
(Long Side)

Code:
MET01-1002H1
Size mm:
1,000 x 720 x 32
Pallet Qty:
74
UM:
pc.
DAK-Storm - Half Module

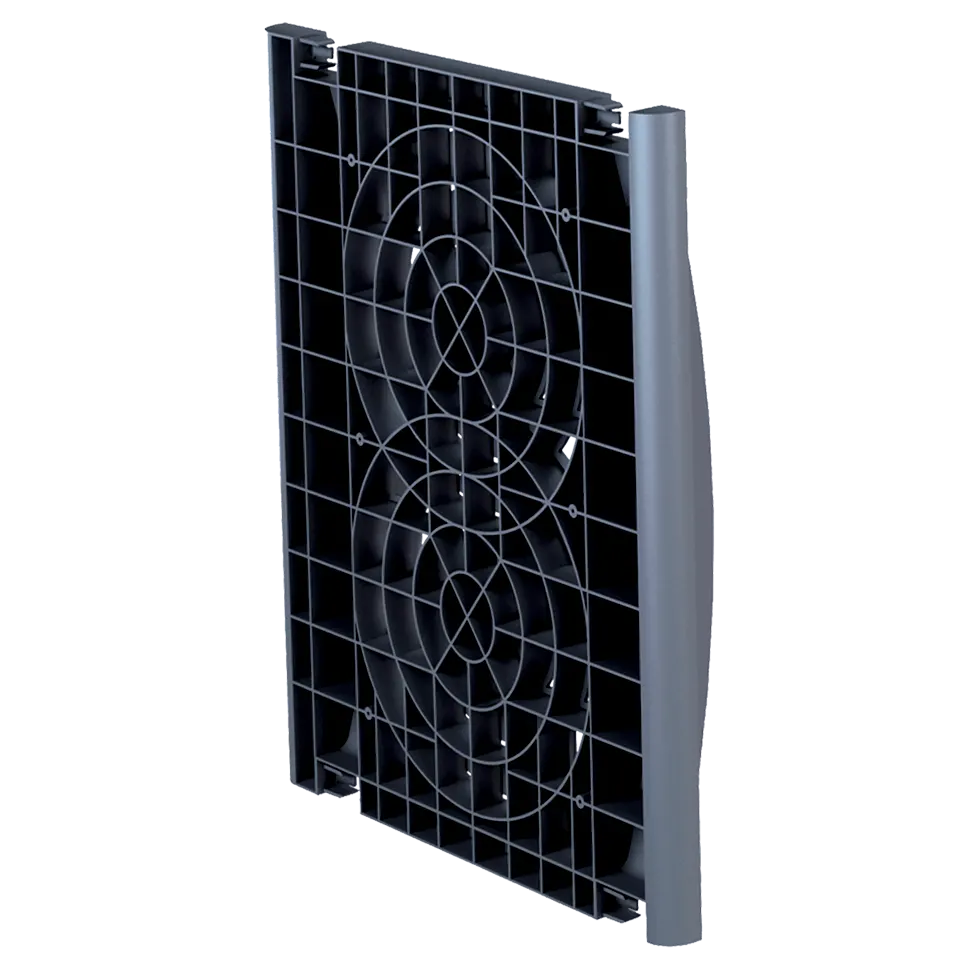

03 - Side Grids
(Short Side)

Code:
MET01-1003H1
Size mm:
600 x 720 x 36
Pallet Qty:
48
UM:
pc.
DAK-Storm - Half Module

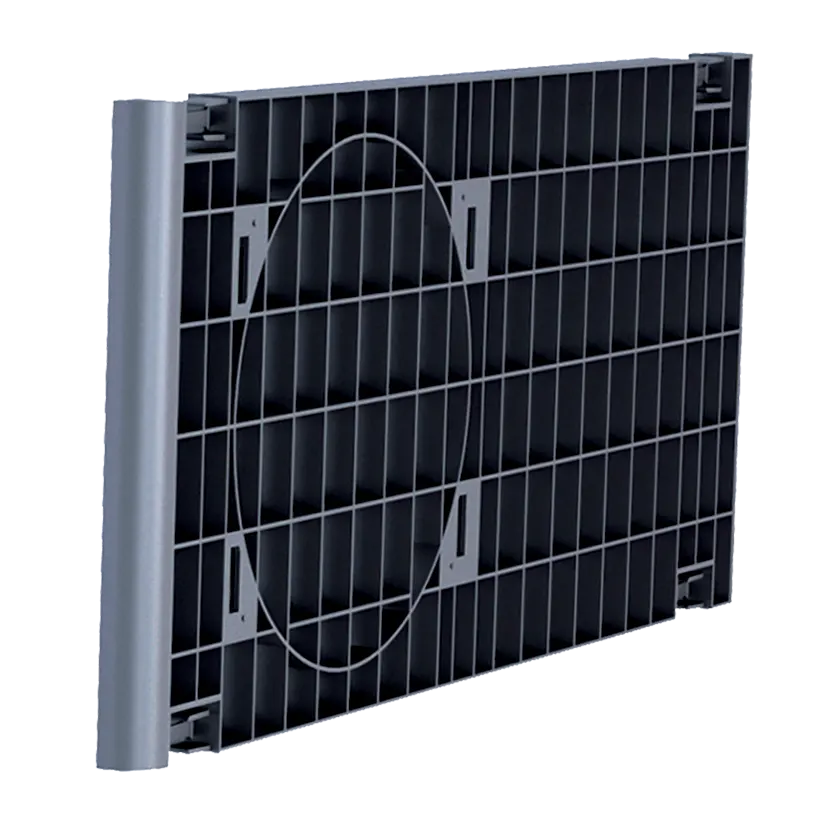

04 - Side Grids - Long Side for Half Module

Code:
MET01-1002H2
Size mm:
1,000 x 430 x 36
Pallet Qty:
128
UM:
pc.
DAK-Storm - Half Module

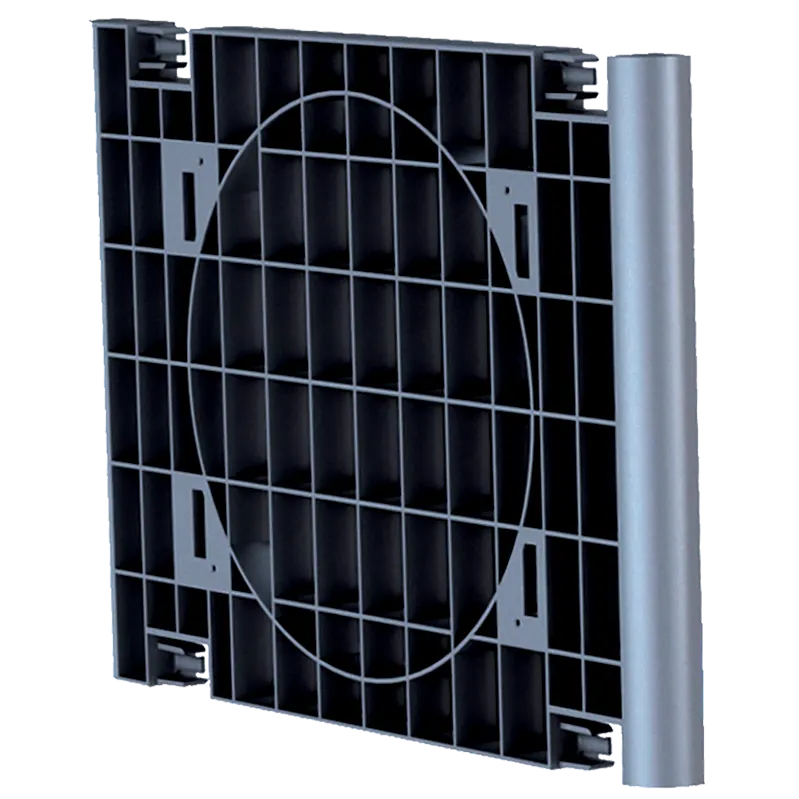

05 - Side Grids - Short Side for Half Module

Code:
MET01-1003H2
Size mm:
600 x 430 x 36
Pallet Qty:
216
UM:
pc.
DAK-Storm - Half Module

06 - Joint
(100 pack)

Code:
MET01-3001
Size mm:
1,000 x 720 x 32
Pallet Qty:
4800
UM:
pc.
DAK-Storm - Half Module

07 - Half Joint
(200 pack)

Code:
MET01-3002
Size mm:
70 x 35 x 33
Pallet Qty:
9600
UM:
pc.
DAK-Storm - Half Module

08 - Module Cone Sealing Plug

Code:
MET01-2002
Size mm:
175 x 250 x 35
Pallet Qty:
64
UM:
pc.
DAK-Storm - Half Module

09 - Male Cone
(Half Module)

Code:
MET01-2001M
Size mm:
330 x 220 x110
Pallet Qty:
108
UM:
pc.
DAK-Storm - Half Module

10 - Female Cone
(Half Module)

Code:
MET01-2001F
Size mm:
330 x 220 x 70
Pallet Qty:
108
UM:
pc.

DAK-Storm Accessories

DAK-Storm - Half Module

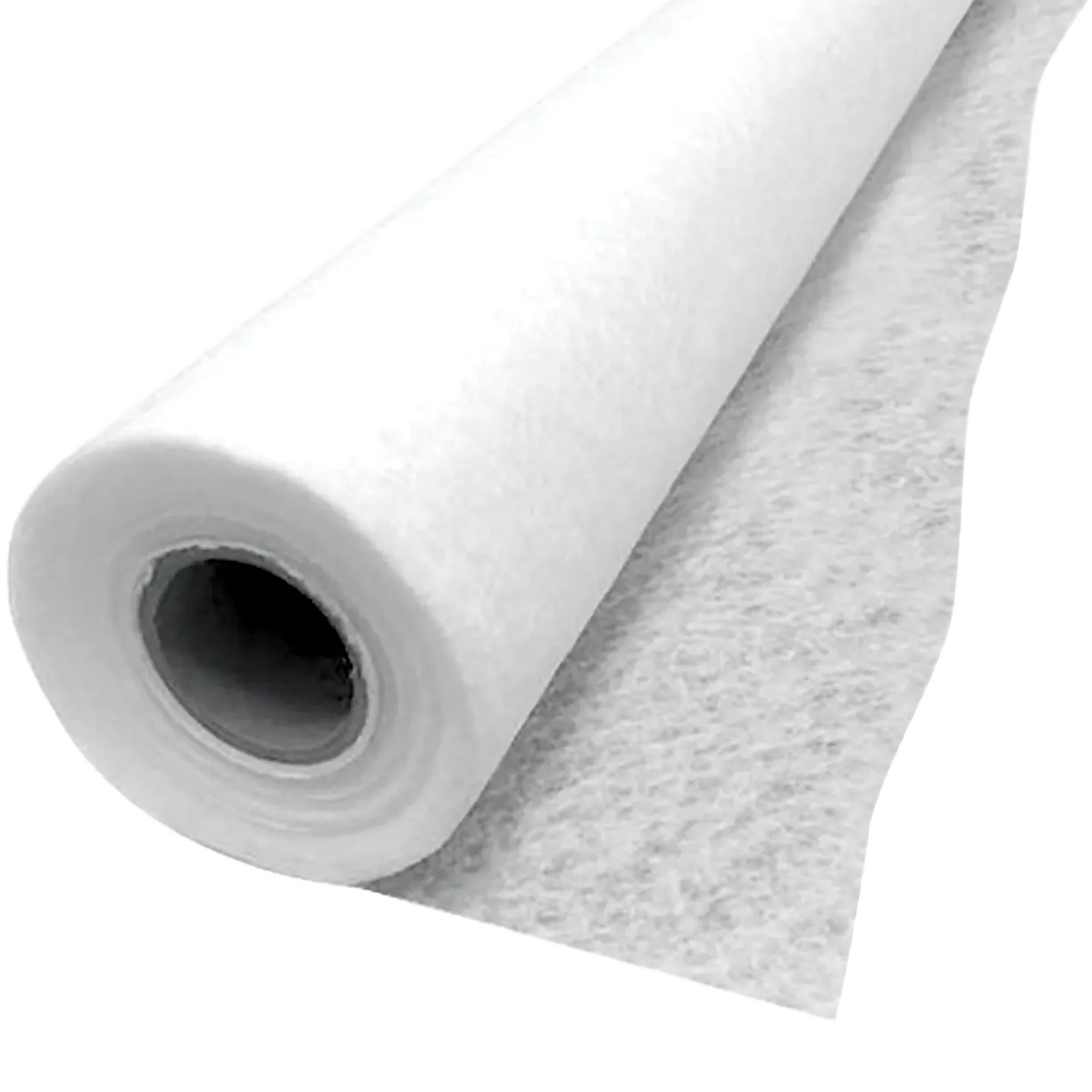

Non-Woven Fabric (TNT) 250g

Code:
MET01-4020/25
Size m:
100
UM:
pc.
DAK-Storm - Half Module

Non-Woven Fabric pol. 200g

Code:
GAR03-0061
Size m:
2 x 50
UM:
pc.
DAK-Storm - Half Module

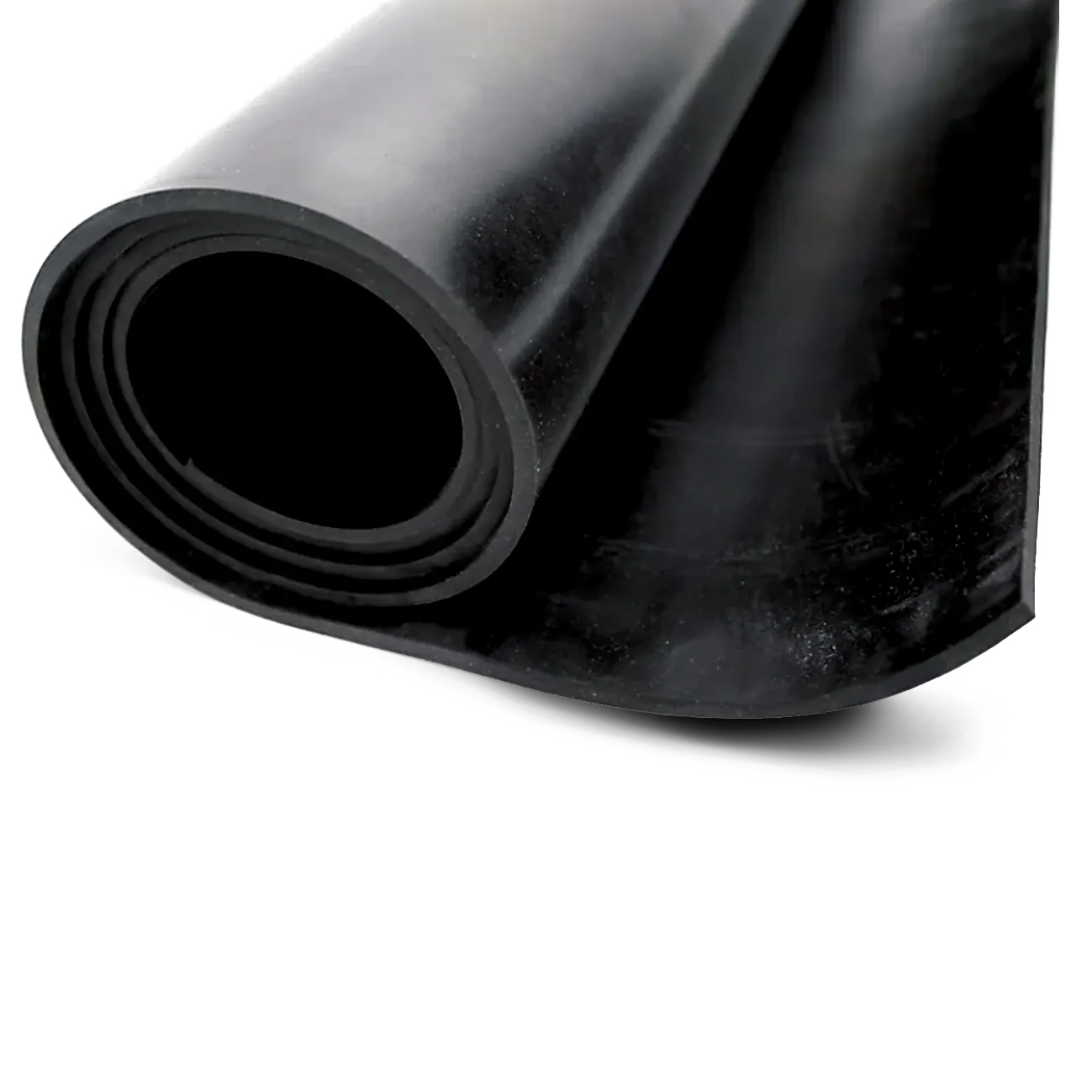

Geomembrane 240 g

Code:
MET01-4021/24
Size m:
21 x 14
UM:
pc.
DAK-Storm - Half Module

Geomembrane 380 g

Code:
MET01-4021/38
Size m:
2 x 14
Pallet Qty:
128
UM:
pc.
DAK-Storm - Half Module

Inspection Pit

Code:
MET01-4005
Size mm:
400 x 250 h. 300
UM:
pc.
DAK-Storm - Half Module

Inlet/Outlet Adapter Plate

Code:
MET01-4007
Size mm:
250/315/350
UM:
pc.
