Drainage Products

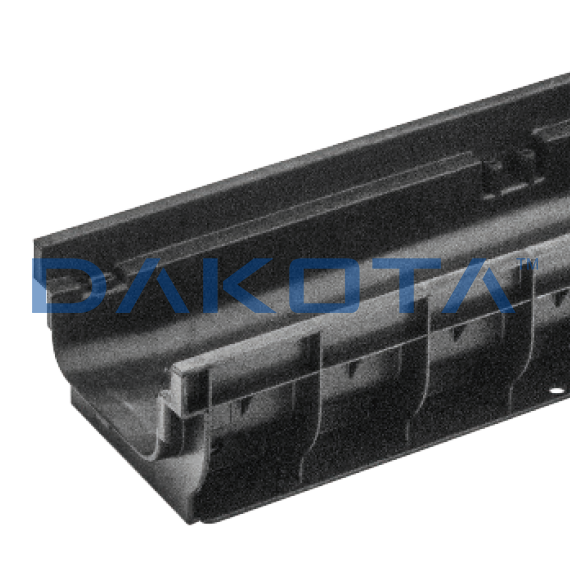

Taurus 130 (5") Channel Drains

Used for the collection and drainage of rainwater and for the discharge of liquids for industrial use. The HDPE material has an excellent resistance to chemicals and organic agents and it is “self-cleaning”. This channel is shock resistant, unbreakable and can guarantee high performances in temperatures from -40° C to 100° C (-40° F to 212° F). It is available in black, in different designs and depths.

Classifications and Standards

Technical Datasheet download symbol
Specification Sheet
  • main pic

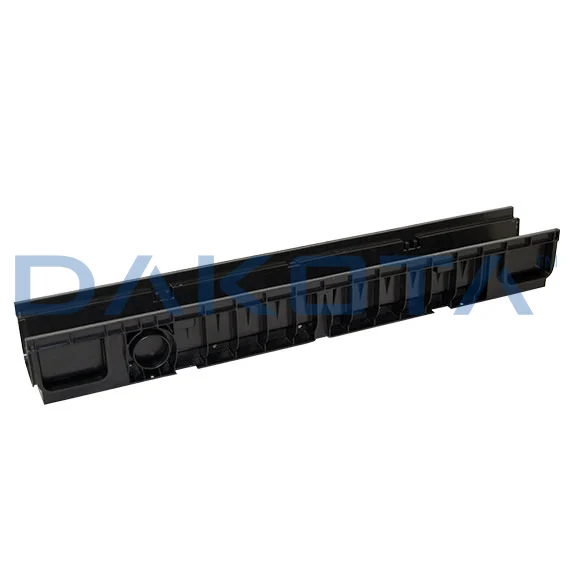

  • full channel
  • Slider Item 3
  • Slider Item 4

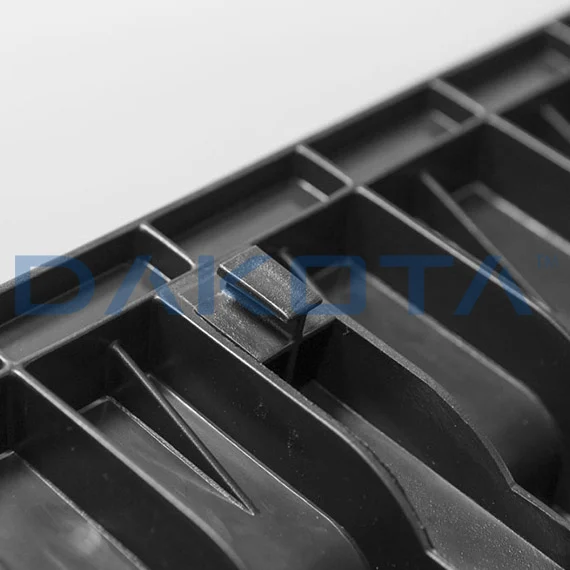

  • Slider Item 5
  • Slider Item 6

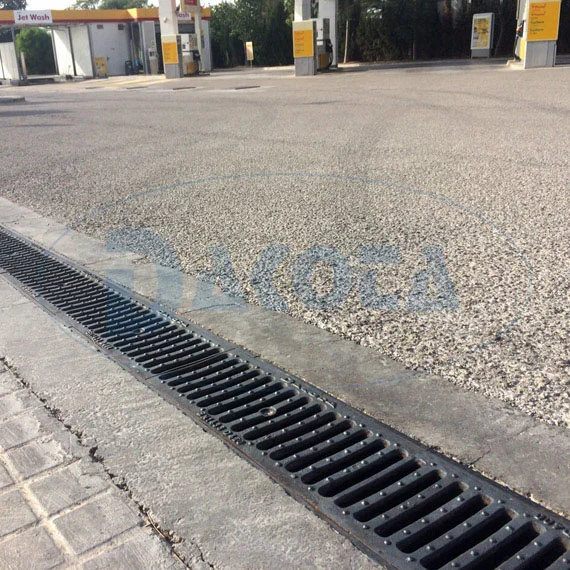

  • Slider Item 7

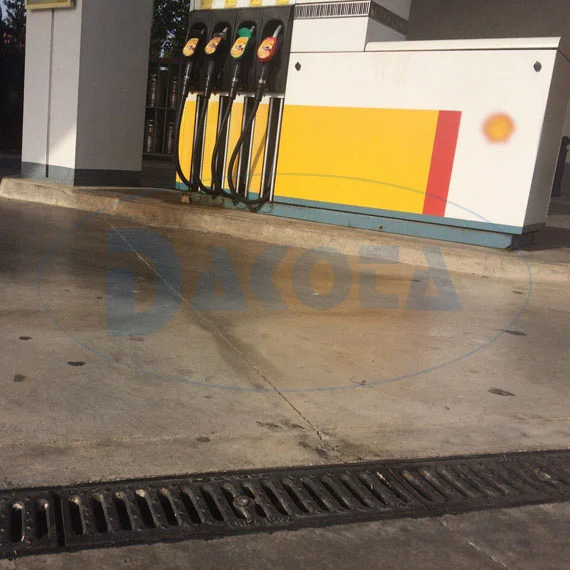

  • Slider Item 8
  • Slider Item 9
  • Slider Item 10

 Code: POZ92-1304
Taurus 130/40 - 130 x 40 x 1,000mm (5 x 1⁹⁄₁₆ x 39⅖")

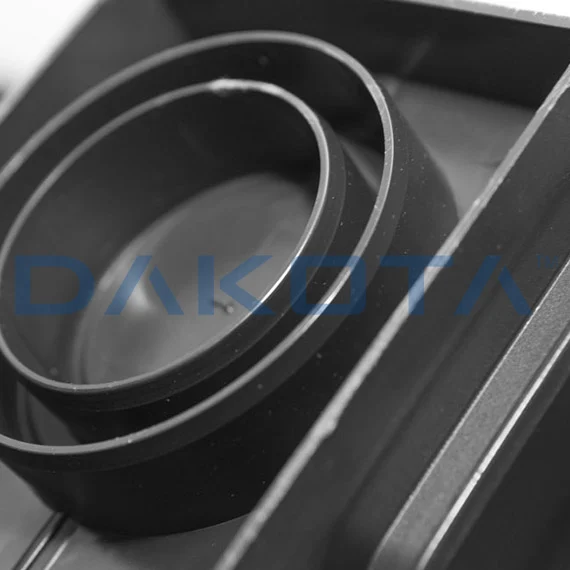

Lateral outlet diameter is 50mm (2") - bottom outlet diameters are 75, 100mm (3, 4")
Note: Measurements shown above relate to OD's (outside diameters) of pipes.
Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
105 pcs.

Code: POZ92-1307P
Taurus 130/75 - 130 x 75 x 1,000mm (5 x 3 x 39⅖")

Lateral inlet diameter is 63mm (2½"). Bottom outlet diameters are 75, 100mm (3, 4") or 110mm (4⅓") with adaptor POX96-1319. Taurus channels are compatible with reinforcement profile (POZ95-1317) - with this profile you can get up to F900 loading capacity.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
70 pcs.

Code: POZ92-1315P
Taurus 130/150 - 130 x 150 x 1,000mm (5 x 6 x 39⅖")

Lateral inlet diameters are 63mm (2½"). Bottom outlet diameters are 75, 110mm (3, 4⅓"). Taurus channels are compatible with reinforcement profile (POZ95-1317) - with this profile you can get up to F900 loading capacity.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.

Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
105 pcs.

Code: POZ92-1315PGD
Taurus 130/150 - 130 x 150 x 1,000mm (5 x 6 x 39⅖") - with Grating

Lateral inlet diameters are 63mm (2½"). Bottom outlet diameters are 75, 110mm (3, 4⅓"). Taurus channels are compatible with reinforcement profile (POZ95-1317) - with this profile you can get up to F900 loading capacity.
Note: Measurements shown above relate to OD's (outside diameters) of pipes.
Download Legend
PDF BLUE = Declaration of Conformity
PDF RED = Technical Datasheet
  Qty:
105 pcs.

Drainage Channel Accessories - Taurus 130

End caps, galvanised and stainless steel reinforcement profiles, anchor bracket and gasket for channels.
Materials: HDPE (high density polyethylene) for end caps, galvanised and stainless steel for profiles and EPDM rubber gasket for the connection.

Use

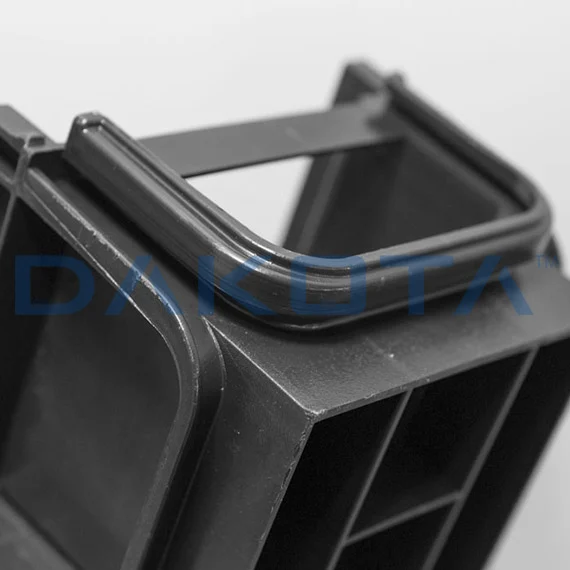

The end caps are used as terminals for the channel, the profile is used as a reinforcement  for the edge of both the channel and the gasket edges.
See Taurus 130 (5") wide channels pre-assembled with gratings.

See all the gratings that will fit the Taurus 130 (5") wide channels.

Open & Closed End Caps
(2 pcs/pack)

Code: POZ95-1304TB
Size: 130 x 40mm (5 x 1½")
Pallet Qty: 3,000

Open, Closed & Terminal End Caps (3 pcs/pack)

Code: POZ95-1307PTB
Size: 130 x 75mm (5 x 3")
Pallet Qty: 1,800

End Cap


Code: POZ95-1315PTB
Size: 130 x 150mm (5 x 6")
Pallet Qty: 1,000

End Cap for pre-assembled grating Kit

Code: POZ95-1315PTG
Size: 130 x 150mm (5 x 6")
Pallet Qty: 1,200

Lock System 130


Code: POZ95-1307B
Size: 130mm (5")
Pallet Qty: 4,000

Lock System Skat


Code: POZ95-1310B
Size: 130mm (5")
Pallet Qty: 3,000

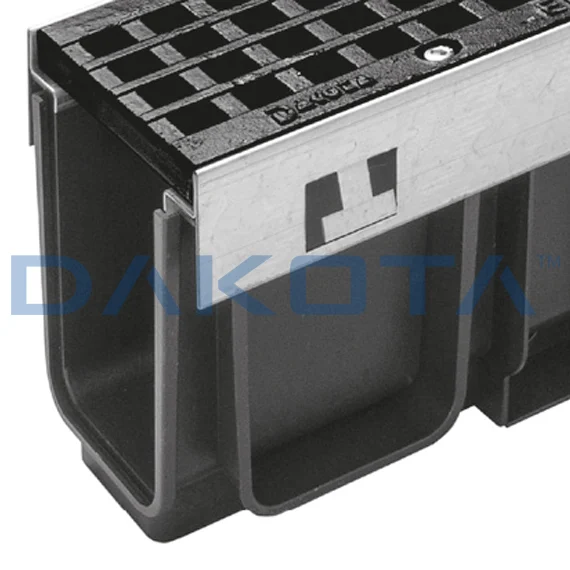

Galvanised Steel Reinforcement Profile

Code: POZ95-1317
Size: 1000mm (39⅓")
Pallet Qty: 500

Stainless Steel Reinforcement Profile

Code: POZ95-1318
Size: 1,000mm (39⅓")
Pallet Qty: 500

Galv. steel reinforcement profile for POZ...

Code: POZ95-1317/ZP15
Size: 1000mm (39⅓")
Pallet Qty: 2,000

Gasket for Channels


Code: POZ95-1319
Size: ø 100 / 110mm (ø 4 / 4⅓")
Pallet Qty: 3,750

Open/Closed End Cap


Code: POZ95-1315TB
Size: 130 x 150mm (5 x 6")
Pallet Qty: 1,600
